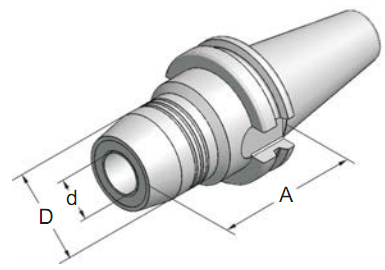

ISO Taper-toolholders


Expansion chucks


Taper angle AT3, Concentricity from the taper to the holding part < 0.003

Base-body balanced G 2.5 - 25,000 r.p.m
       DIN 69871
 Art.-Nr. TypeK A d D
 40.01.06.70 SK40x06x80.5-AD+B 80.5 6 26
 40.01.08.70 SK40x08x80.5-AD+B 80.5 8 28
 40.01.10.70 SK40x10x80.5-AD+B 80.5 10 30
 40.01.12.70 SK40x12x80.5-AD+B 80.5 12 32
 40.01.16.70 SK40x16x80.5-AD+B 80.5 16 38
 40.01.20.70 SK40x20x80.5-AD+B 80.5 20 42
 40.01.20.71 SK40x20x64.5-AD+B 64.5 20 49
 40.01.25.70 SK40x25x80.5-AD+B 80.5 25 55
 40.01.32.70 SK40x32x80.5-AD+B 80.5 32 63

 50.01.20.70 SK50x20x80.5-AD+B 80.5 20 42
 50.01.32.71 SK50x32x81.0-AD+B 81.0 32 72
       MAS BT
 Art.-Nr. Type A d D
 40.05.06.70 BT40x06x90.0-AD+B 90.0 6 26
 40.05.08.70 BT40x08x90.0-AD+B 90.0 8 28
 40.05.10.70 BT40x10x90.0-AD+B 90.0 10 30
 40.05.12.70 BT40x12x90.0-AD+B 90.0 12 32
 40.05.16.70 BT40x16x90.0-AD+B 90.0 16 38
 40.05.20.70 BT40x20x90.0-AD+B 90.0 20 42
 40.05.20.71 BT40x20x72.5-AD+B 72.5 20 49

 40.05.32.70 BT40x32x83.0-AD+B 83.0 32 63

 50.05.20.70 BT50x20x90.0-AD+B 90.0 20 42
 50.05.32.70 BT50x32x90.0-AD+B 90.0 32 72

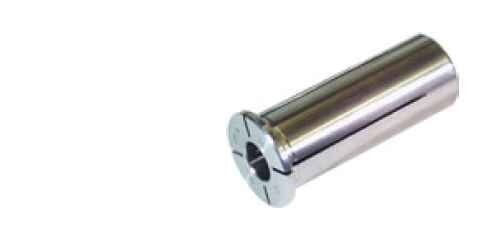

Sleeves
             ø12
 Art.-Nr.   Type
 204370 GZB-S 12/03
 204371 GZB-S 12/04
 204372 GZB-S 12/05
 204373 GZB-S 12/06
 204374 GZB-S 12/08
 204375 GZB-S 12/10



             ø20
 Art.-Nr.   Type
 203197 GZB-S 20/03
 203198 GZB-S 20/04
 203199 GZB-S 20/05
 203200 GZB-S 20/06
 203201 GZB-S 20/08
 203202 GZB-S 20/10
 203203 GZB-S 20/12
 203204 GZB-S 20/14
 203205 GZB-S 20/16
             ø32
 Art.-Nr.   Type
 204320 GZB-S 32/06
 204321 GZB-S 32/08
 204322 GZB-S 32/10
 204323 GZB-S 32/12
 204324 GZB-S 32/14
 204325 GZB-S 32/16
 204326 GZB-S 32/18
 204327 GZB-S 32/20
 204328 GZB-S 32/25
