| HAM 30-2301 solid carbide deep hole drill 15 x D |
|
Engineering data
• Ø d1 0.8–1.45 mm liquid boost design • special 4-facet ground • special point ground • special chip flute geometry • 30° RH helix |
 The current production will be changed to the version with MMP |
| Material |           |
| 30-2301 | |
| very suitable limited suitable | |
             |

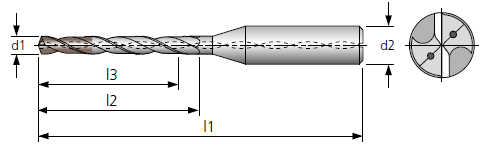

| Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 0.8 | 12 | 13.6 | 60 | 3 | 1.9 | 28.5 | 31.4 | 75 | 3 | |
| 0.85 | 12.75 | 14.45 | 60 | 3 | 1.95 | 29.3 | 32.2 | 75 | 3 | |
| 0.9 | 13.5 | 15.3 | 60 | 3 | 2 | 30 | 33 | 75 | 3 | |
| 0.95 | 14.25 | 16.15 | 60 | 3 | 2.05 | 30.8 | 33.8 | 75 | 3 | |
| 1 | 15 | 16.5 | 60 | 3 | 2.1 | 31.5 | 34.7 | 75 | 3 | |
| 1.05 | 15.8 | 17.3 | 60 | 3 | 2.15 | 32.3 | 35.5 | 75 | 3 | |
| 1.1 | 16.5 | 18.2 | 60 | 3 | 2.2 | 33 | 36.3 | 75 | 3 | |
| 1.15 | 17.3 | 19 | 60 | 3 | 2.25 | 33.8 | 37.1 | 75 | 3 | |
| 1.2 | 18 | 19.8 | 60 | 3 | 2.3 | 34.5 | 38 | 82 | 3 | |
| 1.25 | 18.8 | 20.6 | 60 | 3 | 2.35 | 35.3 | 38.8 | 82 | 3 | |
| 1.3 | 19.5 | 21.5 | 60 | 3 | 2.4 | 36 | 39.6 | 82 | 3 | |
| 1.35 | 20.3 | 22.3 | 60 | 3 | 2.45 | 36.8 | 40.4 | 82 | 3 | |
| 1.4 | 21 | 23.1 | 60 | 3 | 2.5 | 37.5 | 41.3 | 82 | 3 | |
| 1.45 | 21.8 | 23.9 | 60 | 3 | 2.55 | 38.3 | 42.1 | 82 | 3 | |
| 1.5 | 22.5 | 24.8 | 60 | 3 | 2.6 | 39 | 42.9 | 82 | 3 | |
| 1.55 | 23.3 | 25.6 | 60 | 3 | 2.65 | 39.8 | 43.7 | 82 | 3 | |
| 1.6 | 24 | 26.4 | 65 | 3 | 2.7 | 40.5 | 44.6 | 82 | 3 | |
| 1.65 | 24.8 | 27.2 | 65 | 3 | 2.75 | 41.3 | 45.4 | 82 | 3 | |
| 1.7 | 25.5 | 28.1 | 65 | 3 | 2.8 | 42 | 46.2 | 82 | 3 | |
| 1.75 | 26.3 | 28.9 | 65 | 3 | 2.85 | 42.8 | 47 | 82 | 3 | |
| 1.8 | 27 | 29.7 | 65 | 3 | 2.9 | 43.5 | 47.9 | 82 | 3 | |
| 1.85 | 27.8 | 30.5 | 75 | 3 | 2.95 | 44.3 | 48.7 | 82 | 3 | |
| 3 | 45 | 49.5 | 82 | 3 |
 |
|
 |
