| HAM 30-2341 solid carbide deep hole drill 20 x D |
|
Engineering data
• Ø d1 0.8–1.45 mm liquid boost design • special 4-facet ground • special point ground • special chip flute geometry • 30° RH helix |
 The current production will be changed to the version with MMP |
| Material |           |
| 30-2341 | |
| very suitable limited suitable | |
             |

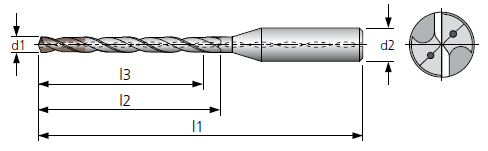

| Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 0.8 | 16 | 17.6 | 65 | 3 | 1.9 | 38 | 40.9 | 75 | 3 | |
| 0.85 | 17 | 18.7 | 65 | 3 | 1.95 | 39 | 41.9 | 75 | 3 | |
| 0.9 | 18 | 19.8 | 65 | 3 | 2 | 40 | 43 | 82 | 3 | |
| 0.95 | 19 | 20.9 | 65 | 3 | 2.05 | 41 | 44.1 | 82 | 3 | |
| 1 | 20 | 21.5 | 65 | 3 | 2.1 | 42 | 45.2 | 82 | 3 | |
| 1.05 | 21 | 22.6 | 65 | 3 | 2.15 | 43 | 46.2 | 82 | 3 | |
| 1.1 | 22 | 23.7 | 65 | 3 | 2.2 | 44 | 47.3 | 82 | 3 | |
| 1.15 | 23 | 24.7 | 65 | 3 | 2.25 | 45 | 48.4 | 82 | 3 | |
| 1.2 | 24 | 25.8 | 65 | 3 | 2.3 | 46 | 49.5 | 100 | 3 | |
| 1.25 | 25 | 26.9 | 65 | 3 | 2.35 | 47 | 50.5 | 100 | 3 | |
| 1.3 | 26 | 28 | 65 | 3 | 2.4 | 48 | 51.6 | 100 | 3 | |
| 1.35 | 27 | 29 | 65 | 3 | 2.45 | 49 | 52.7 | 100 | 3 | |
| 1.4 | 28 | 30.1 | 65 | 3 | 2.5 | 50 | 53.8 | 100 | 3 | |
| 1.45 | 29 | 31.2 | 75 | 3 | 2.55 | 51 | 54.8 | 100 | 3 | |
| 1.5 | 30 | 32.3 | 75 | 3 | 2.6 | 52 | 55.9 | 100 | 3 | |
| 1.55 | 31 | 33.3 | 75 | 3 | 2.65 | 53 | 57 | 100 | 3 | |
| 1.6 | 32 | 34.4 | 75 | 3 | 2.7 | 54 | 58.1 | 100 | 3 | |
| 1.65 | 33 | 35.5 | 75 | 3 | 2.75 | 55 | 59.1 | 100 | 3 | |
| 1.7 | 34 | 36.6 | 75 | 3 | 2.8 | 56 | 60.2 | 100 | 3 | |
| 1.75 | 35 | 37.6 | 75 | 3 | 2.85 | 57 | 61.3 | 100 | 3 | |
| 1.8 | 36 | 38.7 | 75 | 3 | 2.9 | 58 | 62.4 | 100 | 3 | |
| 1.85 | 37 | 39.8 | 75 | 3 | 2.95 | 59 | 63.4 | 100 | 3 | |
| 3 | 60 | 64.5 | 100 | 3 |
 |
|
 |
