| HAM 30-2381 solid carbide deep hole drill 15 x D |
|
Engineering data
• special 4-facet ground • special point ground • special chip flute geometry • 4 guide chamfer |
 The current production will be changed to the version with MMP |
| Material |           |
| 30-2381 | |
| very suitable limited suitable | |
            |

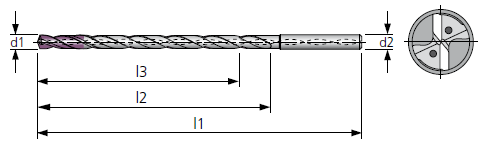

| Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 3 | 45 | 51 | 95 | 6 | 7 | 105 | 119 | 160 | 8 | |
| 4 | 60 | 68 | 110 | 6 | 8 | 120 | 136 | 175 | 8 | |
| 4.5 | 67.5 | 76.5 | 120 | 6 | 8.5 | 127.5 | 144.5 | 190 | 10 | |
| 5 | 75 | 85 | 125 | 6 | 10 | 150 | 170 | 215 | 10 | |
| 5.5 | 82.5 | 93.5 | 135 | 6 | 12 | 180 | 204 | 255 | 12 | |
| 6 | 90 | 102 | 140 | 6 | 14 | 210 | 238 | 285 | 14 | |
| 6.5 | 97.5 | 110.5 | 150 | 8 |
 |
|
 |
