| HAM 30-2421 solid carbide deep hole drill 20 x D |
|
Engineering data
• special 4-facet ground • special point ground • special chip flute geometry • 4 guide chamfer |
 The current production will be changed to the version with MMP |
| Material |           |
| 30-2421 | |
| very suitable limited suitable | |
            |

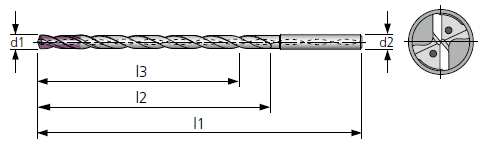

| Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 3 | 60 | 66 | 110 | 6 | 7 | 140 | 154 | 195 | 8 | |
| 4 | 80 | 88 | 130 | 6 | 8 | 160 | 176 | 215 | 8 | |
| 4.5 | 90 | 99 | 140 | 6 | 8.5 | 170 | 187 | 230 | 10 | |
| 5 | 100 | 110 | 150 | 6 | 10 | 200 | 220 | 265 | 10 | |
| 5.5 | 110 | 121 | 160 | 6 | 12 | 240 | 264 | 315 | 12 | |
| 6 | 120 | 132 | 170 | 6 | ||||||
| 6.5 | 130 | 143 | 185 | 8 |
 |
|
 |
