| HAM 30-2461 solid carbide deep hole drill 25 x D |
|
Engineering data
• special 4-facet ground • special point ground • special chip flute geometry • 4 guide chamfer |
 The current production will be changed to the version with MMP |
| Material |           |
| 30-2461 | |
| very suitable limited suitable | |
            |

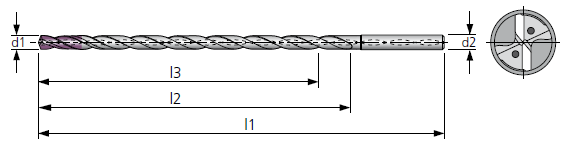

| Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 3 | 75 | 81 | 125 | 6 | 6 | 150 | 162 | 200 | 6 | |
| 4 | 100 | 108 | 150 | 6 | 6.5 | 162.5 | 175.5 | 215 | 8 | |
| 4.5 | 112.5 | 121.5 | 165 | 6 | 8 | 200 | 216 | 255 | 8 | |
| 5 | 125 | 135 | 175 | 6 | 10 | 250 | 270 | 315 | 10 | |
| 5.5 | 137.5 | 148.5 | 190 | 6 |
 |
|
 |
