| HAM 30-2501 solid carbide deep hole drill 30 x D |
|
Engineering data
• special 4-facet ground • special point ground • special chip flute geometry • 4 guide chamfer |
 The current production will be changed to the version with MMP |
| Material |           |
| 30-2501 | |
| very suitable limited suitable | |
            |

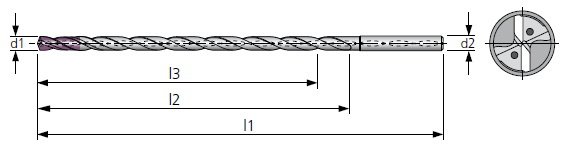

| Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 3 | 90 | 96 | 140 | 6 | 6 | 180 | 192 | 230 | 6 | |
| 4 | 120 | 128 | 170 | 6 | 6.5 | 195 | 208 | 250 | 8 | |
| 4.5 | 135 | 144 | 185 | 6 | 7 | 210 | 224 | 265 | 8 | |
| 5 | 150 | 160 | 200 | 6 | 8 | 240 | 256 | 295 | 8 | |
| 5.5 | 165 | 176 | 215 | 6 |
 |
|
 |
