ISO Taper-toolholders

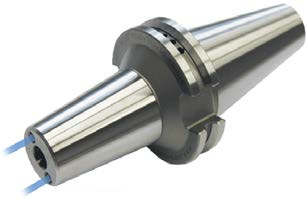

Shrinking chucks with lockable coolant channels


Taper angle AT3, Concentricity from the taper to the holding part < 0.005

SK40/BT40 G 2.5 - 20,000 r.p.m.
SK50/BT50 G 2.5 - 15,000 r.p.m.

Delivery without tool
       DIN 69871
 Art.-Nr. Type A d D L
 40.01.08.36 SK40x08Sx  80-AD+B+C   80   8 24 40
 40.01.10.36 SK40x10Sx  80-AD+B+C   80 10 26 42
 40.01.12.36 SK40x12Sx  80-AD+B+C   80 12 28 47
 40.01.14.36 SK40x14Sx  80-AD+B+C   80 14 30 47
 40.01.16.36 SK40x16Sx  80-AD+B+C   80 16 32 50
 40.01.18.36 SK40x18Sx  80-AD+B+C   80 18 34 50
 40.01.20.36 SK40x20Sx  80-AD+B+C   80 20 36 52
 40.01.25.36 SK40x25Sx  90-AD+B+C   90 25 42 58

 50.01.08.36 SK50x08Sx100-AD+B+C 100   8 24 40
 50.01.10.36 SK50x10Sx100-AD+B+C 100 10 26 42
 50.01.12.36 SK50x12Sx100-AD+B+C 100 12 28 47
 50.01.14.36 SK50x14Sx100-AD+B+C 100 14 30 47
 50.01.16.36 SK50x16Sx100-AD+B+C 100 16 32 50
 50.01.20.36 SK50x20Sx100-AD+B+C 100 20 36 52
 50.01.25.36 SK50x25Sx100-AD+B+C 100 25 42 58
 50.01.32.36 SK50x32Sx100-AD+B+C 100 32 49 58

 50.01.10.362 SK50x10Sx130-AD+B+C 130 10 26 42
 50.01.12.362 SK50x12Sx130-AD+B+C 130 12 28 47
 50.01.16.362 SK50x16Sx130-AD+B+C 130 16 32 50
 50.01.20.362 SK50x20Sx130-AD+B+C 130 20 36 52
 50.01.25.362 SK50x25Sx130-AD+B+C 130 25 42 58
 50.01.32.362 SK50x32Sx130-AD+B+C 130 32 49 58
       MAS BT
 Art.-Nr. Type A d D L
 40.05.08.36 BT40x08Sx  80-AD+B+C   80   8 24 40
 40.05.10.36 BT40x10Sx  80-AD+B+C   80 10 26 42
 40.05.12.36 BT40x12Sx  80-AD+B+C   80 12 28 47
 40.05.14.36 BT40x14Sx  80-AD+B+C   80 14 30 47
 40.05.16.36 BT40x16Sx  80-AD+B+C   80 16 32 50
 40.05.18.36 BT40x18Sx  80-AD+B+C   80 18 34 50
 40.05.20.36 BT40x20Sx  80-AD+B+C   80 20 36 52
 40.05.25.36 BT40x25Sx  80-AD+B+C   90 25 42 58

 50.05.08.36 BT50x08Sx100-AD+B+C 100   8 24 40
 50.05.10.36 BT50x10Sx100-AD+B+C 100 10 26 42
 50.05.12.36 BT50x12Sx100-AD+B+C 100 12 28 47
 50.05.14.36 BT50x14Sx100-AD+B+C 100 14 30 47
 50.05.16.36 BT50x16Sx100-AD+B+C 100 16 32 50
 50.05.20.36 BT50x20Sx100-AD+B+C 100 20 36 52
 50.05.25.36 BT50x25Sx100-AD+B+C 100 25 42 58
 50.05.32.36 BT50x32Sx100-AD+B+C 100 32 49 58











We reserve the right to make technical changes.
