| HAM 30-2740 solid carbide deep hole drill 40 x D |
|
Engineering data
• special 4-facet ground • special point ground • special polished chip flute geometry • 15° RH helix • 4 guide chamfer |
 The current production will be changed to the version with MMP |
| Material |     |
| 30-2740 | |
| very suitable limited suitable | |
            |

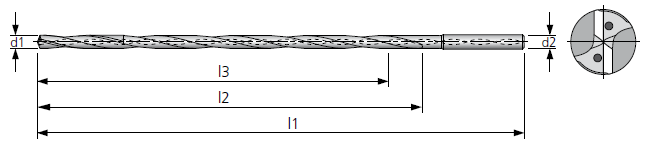

| Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 4 | 160 | 168 | 210 | 6 | 5 | 200 | 210 | 250 | 6 | |
Recommendation for using the deep hole drills: drilling a pilot hole with HAM 30-1891 |
||||||||||
 |
|
 |
