| HAM 510 | HAM 516 |
 |
| HAM 50-1040 (HAM 510) solid carbide chucking reamers |
|
Engineering data
• unequal division • short bevel • design as specified acc. DIN 1420 |
 |
| Material |                |
| 50-1040 | |
| very suitable limited suitable | |
       |

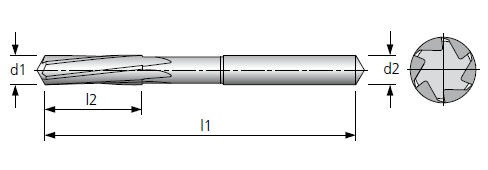

| Ø d1 (H7) mm |
Ø d1 from ... to |
l2 mm |
l1 mm |
Z |
Ø d2 (h6) mm |
Ø d1 (H7) mm |
Ø d1 from ... to |
l2 mm |
l1 mm |
Z |
Ø d2 (h6) mm |
|
| 2 | 1.90 - 2.12 | 11 | 49 | 4 | 2 | 6.5 | 6.21 - 6.70 | 30 | 101 | 6 | 6.3 | |
| 2.2 | 2.13 - 2.36 | 12 | 53 | 4 | 2.2 | 7 | 6.71 - 7.50 | 30 | 109 | 6 | 7.1 | |
| 2.5 | 2.37 - 2.65 | 14 | 57 | 4 | 2.5 | 8 | 7.51 - 8.50 | 32 | 117 | 6 | 8 | |
| 3 | 2.66 - 3.15 | 20 | 61 | 6 | 3 | 9 | 8.51 - 9.50 | 36 | 125 | 6 | 9 | |
| 3.5 | 3.16 - 3.75 | 22 | 70 | 6 | 3.5 | 10 | 9.51 - 10.50 | 38 | 133 | 6 | 10 | |
| 4 | 3.76 - 4.25 | 22 | 75 | 6 | 4 | 11 | 10.51 - 11.50 | 41 | 142 | 6 | 10 | |
| 4.5 | 4.26 - 4.75 | 22 | 75 | 6 | 4.5 | 12 | 11.51 - 12.00 | 44 | 151 | 6 | 10 | |
| 5 | 4.76 - 5.30 | 28 | 86 | 6 | 5 | |||||||
| 5.5 | 5.31 - 5.80 | 28 | 93 | 6 | 5.6 | |||||||
| 6 | 5.81 - 6.20 | 30 | 93 | 6 | 5.6 |
 |
|
 |
