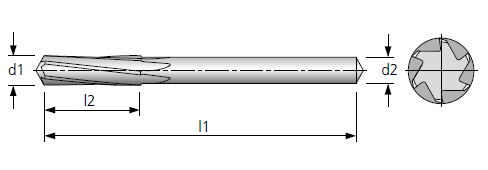

| HAM 50-1080 (HAM 516) solid carbide chucking reamers |
|
Engineering data
• unequal division • short bevel • design as specified acc. DIN 1420 |
 |
| Material |                |
| 50-1040 | |
| very suitable limited suitable | |
       |
| Ø d1 (H7) mm |
Ø d1 from ... to |
l2 mm |
l1 mm |
Z |
Ø d2 (h6) mm |
Ø d1 (H7) mm |
Ø d1 from ... to |
l2 mm |
l1 mm |
Z |
Ø d2 (h6) mm |
|
| 3 | 2.75 - 3.25 | 16 | 50 | 6 | 2.5 | 7 | 6.76 - 7.50 | 25 | 71 | 6 | 6.3 | |
| 3.5 | 3.26 - 3.75 | 16 | 50 | 6 | 3 | 8 | 7.51 - 8.50 | 25 | 71 | 6 | 6.3 | |
| 4 | 3.76 - 4.25 | 20 | 56 | 6 | 3.55 | 9 | 8.51 - 9.50 | 25 | 71 | 6 | 8 | |
| 4.5 | 4.26 - 4.75 | 22 | 63 | 6 | 4 | 10 | 9.51 - 10.5 | 25 | 71 | 6 | 8 | |
| 5 | 4.76 - 5.25 | 22 | 63 | 6 | 4 | 11 | 10.6 - 11.5 | 28 | 80 | 6 | 10 | |
| 5.5 | 5.26 - 5.75 | 22 | 63 | 6 | 5 | 12 | 11.6 - 12.5 | 28 | 80 | 6 | 10 | |
| 6 | 5.76 - 6.25 | 22 | 63 | 6 | 5 | 13 | 12.6 - 13.5 | 28 | 80 | 6 | 10 | |
| 6.5 | 6.26 - 6.75 | 22 | 63 | 6 | 5 | 14 | 13.6 - 14.0 | 32 | 90 | 8 | 12.5 |
 |
|
 |
