ISO Taper-toolholders

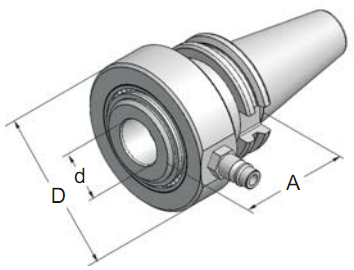

Toolholder for coolant- and air supply


Taper angle AT3, Concentricity from the taper to the holding part < 0.005

max. r.p.m.                    3,000
Coolant pressure max. 6 bar
Air pressure         max. 4 bar
       DIN 69871
 Art.-Nr. Type A d D
 40.01.25.68 SK40 65 25 80
 40.01.32.68 SK40 65 32 80

 50.01.25.68 SK50 65 25 80
 50.01.32.68 SK50 65 32 80
       MAS BT
 Art.-Nr. Type A d D
 40.05.25.68 BT40 58 25 80
 40.05.32.68 BT40 58 32 80

 50.05.25.68 BT50 65 25 80
 50.05.32.68 BT50 65 32 80

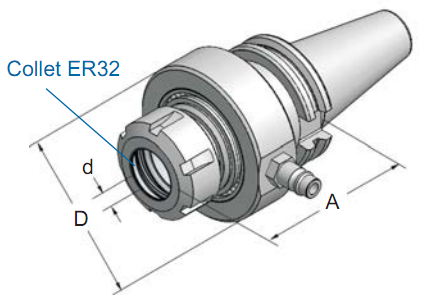

Collet chuck ER32 for coolant- and air supply


max. r.p.m.                    3,000
Coolant pressure max. 6 bar
Air pressure         max. 4 bar

       DIN 69871
 Art.-Nr. Type A d D
 40.01.20.28 SK40 100 2-20 80





We reserve the right to make technical changes.
