The Universal Deburring Tool for Elliptical or Contoured Surfaces • Replaceable solid carbide coated blades • Blade coatings offer longer tool life and increased performance • Sizes 2-41mm (.079-1.614”) available from stock • Breakthrough technology provides consistent quality COFA |
  |

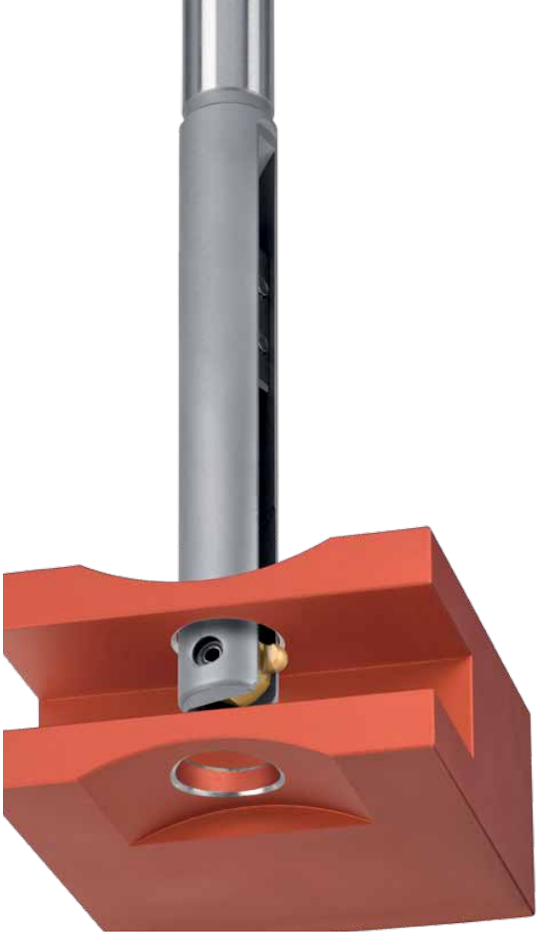

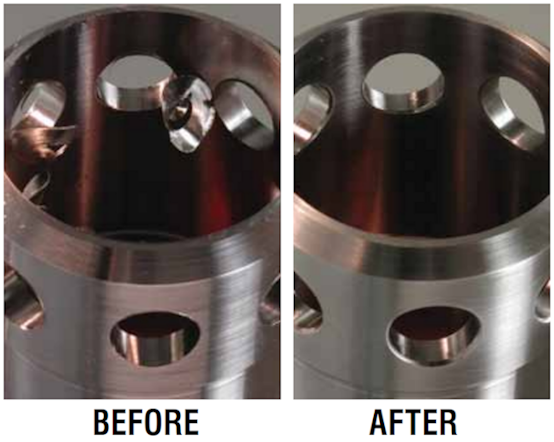

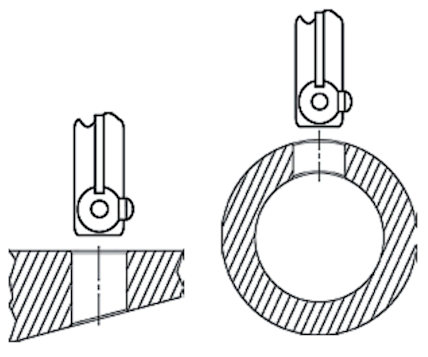

COFA is the first and unrivaled tool system that removes burrs on the front and back of a drilled through-hole on even and uneven surfaces in a single cycle. It radially removes the burrs off the bore edges, without requiring the workpiece to be turned or the spindle stopped. No adjusting screws or setting requirements are necessary. Each tool is sized for your application and material. It is built for high volume production in CNC machines but can also be used for manual operation. The proven advanced system assures high efficiency and the required process capability. |
| Bore | Max. Deburring Capacity 1 | Tool Series |
| Ø 2.0 – Ø 3.1 mm | 0.15 mm |  COFA 2 |
| Ø 3.0 – Ø 4.1 mm | 0.25 mm |  COFA 3 |
| Ø 4.0 – Ø 5.0 mm | 0.25 mm |  COFA 4 |
| Ø 5.0 – Ø 6.0 mm | 0.35 mm |  COFA 5 |
| Ø 6.0 – Ø 8.4 mm | 0.70 mm |  COFA C6 |
| Ø 8.0 – Ø 12.4 mm | 0.90 mm |  COFA C8 |
| Ø 12.0 – Ø 22.0 mm | 1.40 mm |  COFA C12 |
| Ø 20.5 – Ø 30.0 mm |  COFA C12OS |
|
| Ø 30.5 – Ø 40.0 mm | COFA C12OS |
|
| ab Ø 10 mm,Ø 14 mm,Ø 20 mm | 0.70 mm,0.90 mm,1.40 mm |  COFA C6,C8,C12 |
| 1) The deburring result differs due to material, cutting data and application. The value listed is the maximum that is theoretically achievable. The spring has to be selected accordingly. | ||
 |
|
 |
