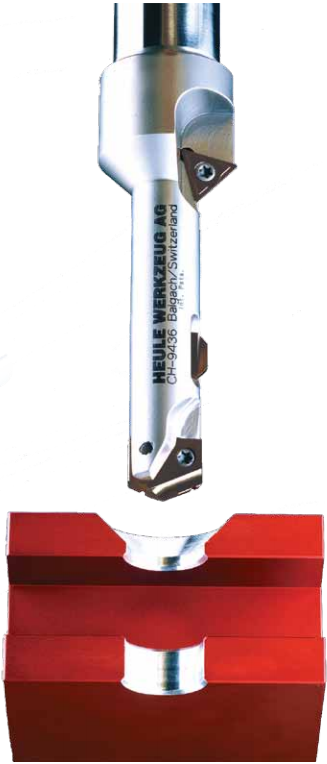

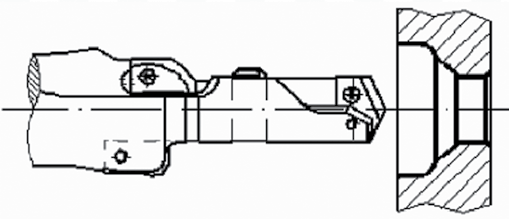

Combination Drill with
Front & Back Chamfering
of Through Holes


• Save time and money by combining
   operations
• Ideal for automotive applications –
   wheels, brake discs
• Custom tooling options available for
   various multi-task operations
• Available in sizes 9.5-35mm

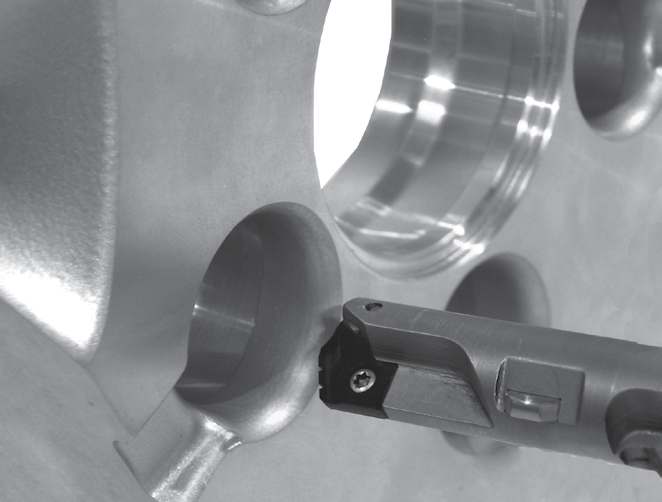

  Our aluminum and steel wheel Multi-Tasking tools for the lug nut drill chamfer operations lead the industry in performance and efficiency. Capable of increasing part production with high performance, accurate drills, combined with HEULE’s patented back chamfer SNAP system.

All robot wheel cells that require back chamfers now use HEULE tools. Some tool holders have run over ONE MILLION holes. Also using COFA tooling for deburring uneven stem holes.

 Bore  Tool Series
 Ø 9.5 – Ø 12.9 mm   .374 - .508”  Drill/Chamfer Tools 1xd
 Ø 13.0 – Ø 17.9 mm  .512 - .704”  Drill/Chamfer Tools 1xd
 Ø 18.0 – Ø 24.9 mm  .709 - .980”  Drill/Chamfer Tools 1xd
 Ø 25.0 – Ø 35.0 mm  .984 - 1.378”  Drill/Chamfer Tools 1xd
 Ø 9.5 – Ø 12.7 mm   .374 - .5”  Drill/Countersink/Chamfer Tools 1xd
 Ø 13.0 – Ø 17.9 mm  .511 - .704”  Drill/Countersink/Chamfer Tools 1xd
 Ø 18.0 – Ø 24.9 mm  .709 - .980”  Drill/Countersink/Chamfer Tools 1xd
 Ø 25.0 – Ø 35.0 mm  .984 - 1.378”  Drill/Countersink/Chamfer Tools 1xd




We reserve the right to make technical changes.
