ISO Taper-toolholders

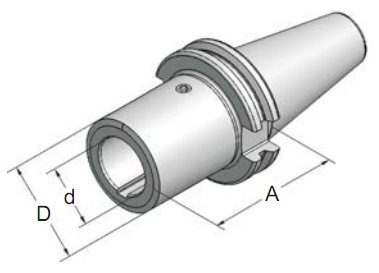

Adapter for setting sleeves to DIN 6327


Taper angle AT3, Concentricity from the taper to the holding part < 0.005
       DIN 69871
 Art.-Nr. Type A d D
 40.01.28.7 SK40x28x  70-AD   70 28 41
 40.01.36.7 SK40x36x120-AD 120 36 50

 50.01.28.7 SK50x28x100-AD 100 28 50
 50.01.36.7 SK50x36x100-AD 100 36 60
 50.01.48.7 SK50x48x100-AD 100 48 80
       MAS BT
 Art.-Nr. Type A d D
 40.05.28.7 BT40x28x  70-AD   70 28 41
 40.05.36.7 BT40x36x120-AD 120 36 50

 50.05.28.7 BT50x28x100-AD 100 28 50
 50.05.36.7 BT50x36x100-AD 100 36 60
 50.05.48.7 BT50x48x100-AD 100 48 80

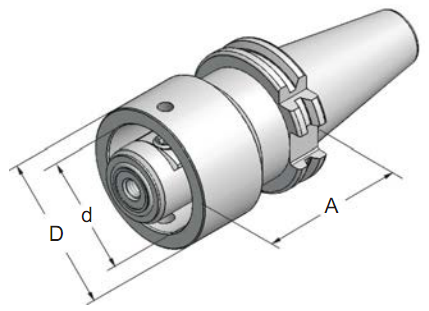

Adaptors for HSK DIN 69893


SK DIN 69871 – HSK DIN 69893                                                     MAS BT – HSK DIN 69893
       DIN 69871
 Art.-Nr. Type SK HSK A D

 40.01.50A SK40xHSK-A50-AD+B 40 A50 50 50
 40.01.50E SK40xHSK-E50-AD+B 40 E50 50 50
 40.01.63A SK40xHSK-A63-AD+B 40 A63 75 63
 40.01.63E SK40xHSK-E63-AD+B 40 E63 75 63

 50.01.50A SK50xHSK-A50-AD+B 50 A50 50 50
 50.01.50E SK50xHSK-E50-AD+B 50 E50 50 50
 50.01.63A SK50xHSK-A63-AD+B 50 A63 50 63
       MAS BT
 Art.-Nr. Type SK HSK A D
 40.05.40A BT40xHSK-A40-AD+B 40 A40 50 40
 40.05.50A BT40xHSK-A50-AD+B 40 A50 50 50

 40.05.63A BT40xHSK-A63-AD+B 40 A63 75 63
