ISO Taper-toolholders

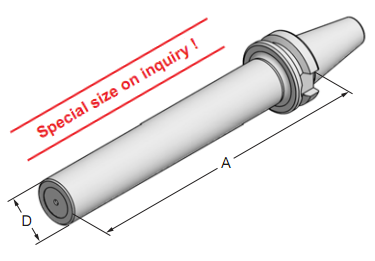

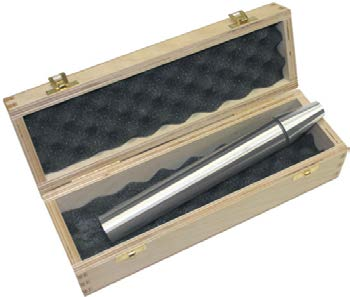

Control arbor in wooden case


For setting the absolute zero point and the concurrency correction
       DIN 69871               MAS BT
 Art.-Nr. Type A D
 30.05.200 SK30xø30x200 200 30

 40.05.315 SK40xø30x315 315 30

 50.05.315 SK50xø50x315 315 50

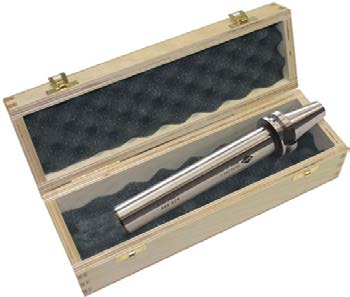

Control arbor with groove in wooden case


For setting the absolute zero point and the concurrency correction
       MAS BT
 Art.-Nr. Type A D
 30.05.200-2 BT30xø30x200 200 30

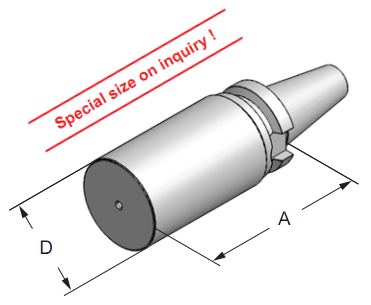

Blanks
       DIN 69871
  Art.-Nr. Type A D
 30.01.150.15 SK30xø54x150 150 54

 40.01.250.15 SK40xø64x250 250 64
       MAS BT
  Art.-Nr. Type A D
 30.05.200.15 BT30xø49x200 200 49

 40.05.250.15 BT40xø64x250 250 64





We reserve the right to make technical changes.
