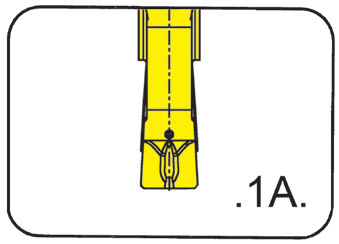

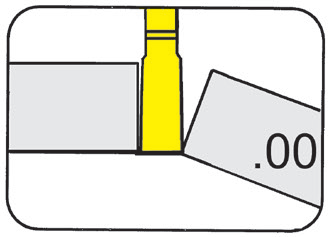

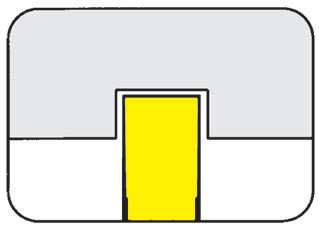

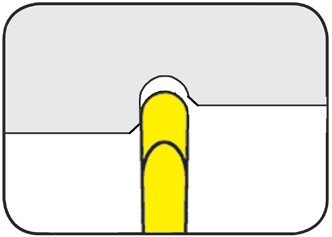

● All dimensions are in mm unless otherwise noted. ● Further dimensions and versions are available on request. ● For torque specification of the screw, please see "Technical Instructions". ● All toolholders of the systems "Mini" with damaged seating can be repaired by HORN. ● Delivery times ▲ on stock Δ 4 weeks ● Use for material groups ● recommended ο alternative recommended - not suitable |

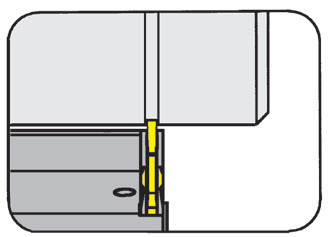

| Threading |
| All threads up to 4.5° helix angle can be manufactured with HORN standard threading inserts. No special anvils will be necessary. |
| Seatings |
| Seatings of Mini as well as of Supermini® guarantee the accurate centre height of these tools. In spite of this please always check centre height because a difference may cause problems especially when machining small diameters. |
| Removal of chips |
| Please choose inserts with small cutting widths, which helps chips evacuation and chip flow out of the bore beside the tool. To avoid jam of chips use the technique to groove by steps. |
| Coolant |
| Use a filtered coolant for transporting the chips out and for cooling the insert itself. A coolant pressure of 10 bar min. is recommended. |
| The HORN connection interface code - what is it needed for? | |

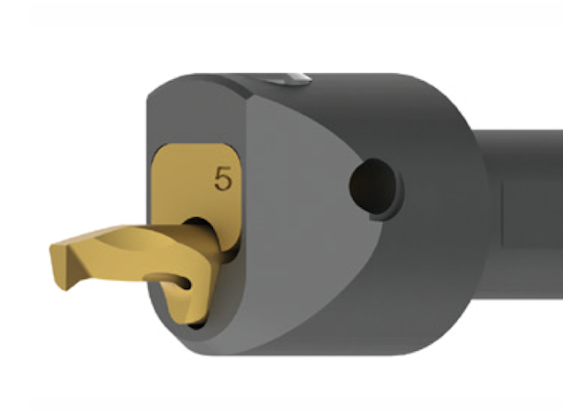

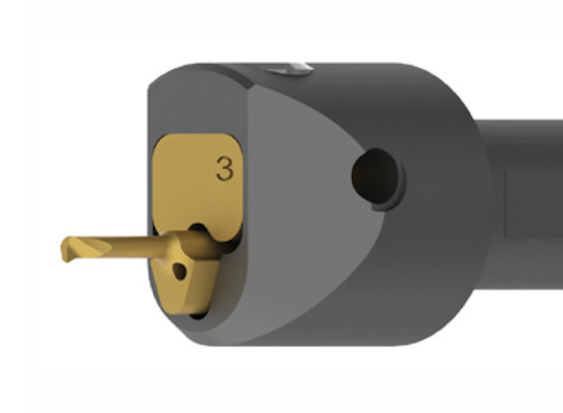

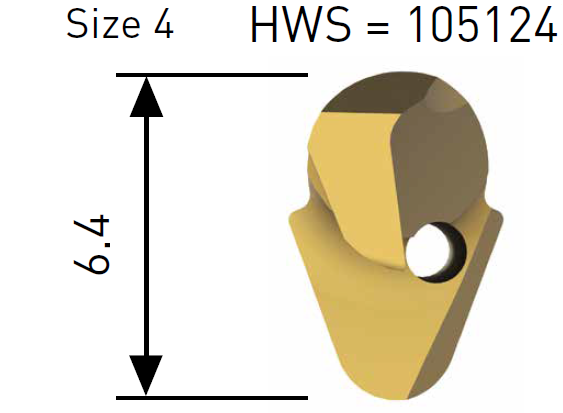

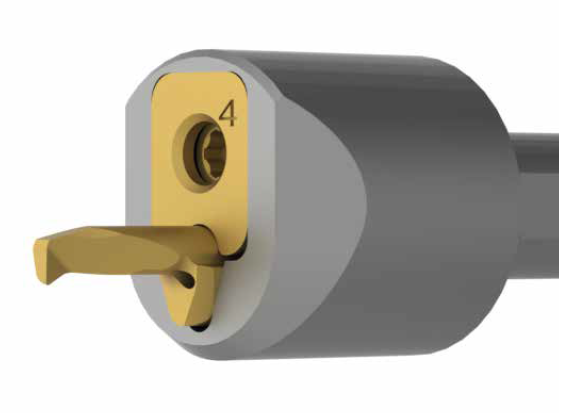

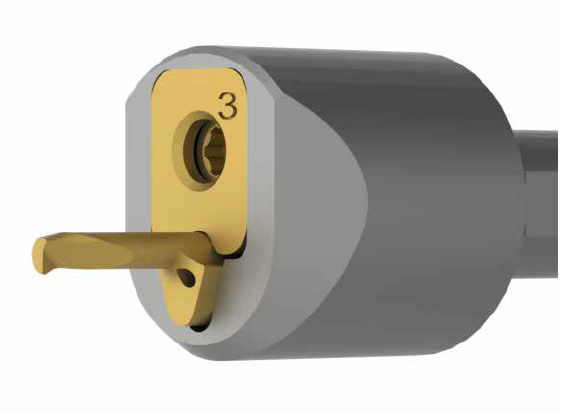

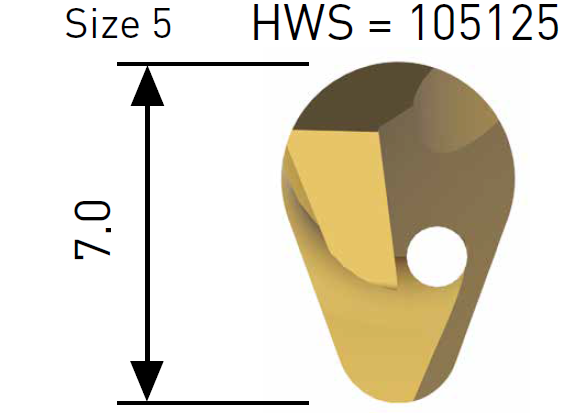

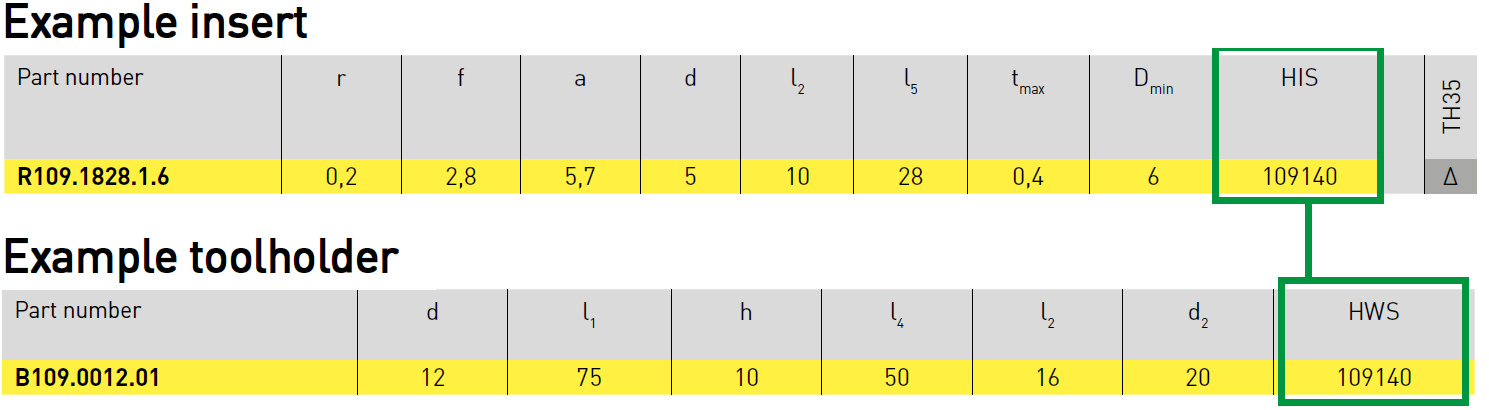

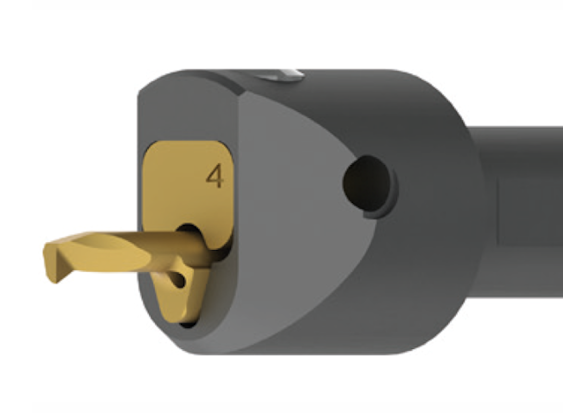

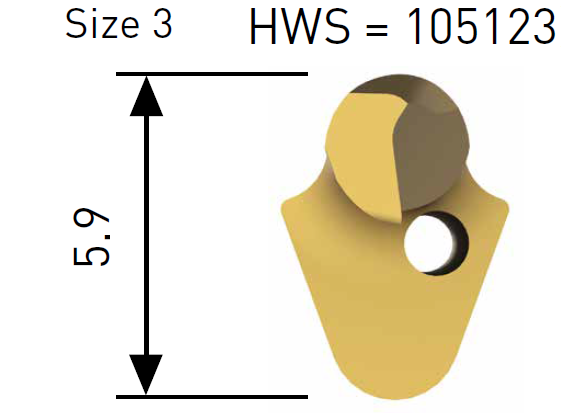

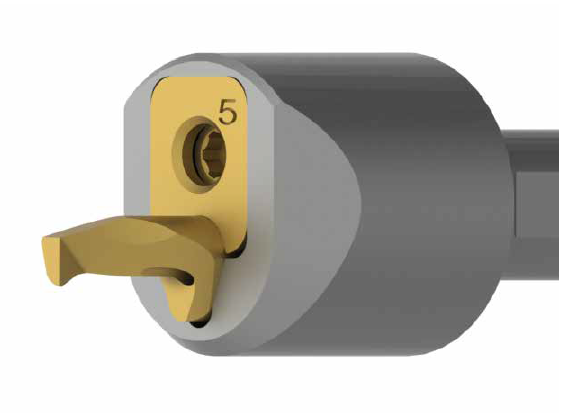

| The connection interface code ensures that you will always find the appropriate tools and is shown on toolholders and inserts. If the codes match, the insert can be used in the corresponding toolholder. This also applies to our modular holder system, where the connection code indicates the interface between the holder and the cassette. |
|
HIS = Insert seat HWS = Interface workpiece side HMS = Interface machine side |
 |
We reserve the right to make technical changes.
