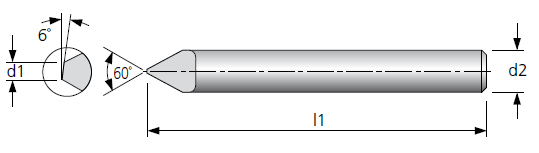

| HAM 40-1880 (HAM 462) solid carbide engraving bits |
|
Engineering data
• centre cutting • special tool for engraving and copying Different cutting angles on request |
 |
| Material |              |
| 30-1880 | |
| very suitable limited suitable | |
        |
| Ø d1 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 0.2 | 3 | 40 | 2 | 0.25 | 8 | 90 | 8 | |
| 0.2 | 3 | 50 | 3 | 0.25 | 10 | 100 | 10 | |
| 0.2 | 4 | 60 | 4 | |||||
| 0.2 | 5 | 60 | 5 | |||||
| 0.2 | 6 | 75 | 6 |
 |
|
 |
