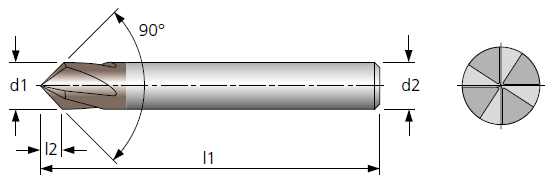

| HAM 40-1921 (HAM 466) solid carbide deburring and chamfering mill |
|
Engineering data
• for chamfering and deburring |
 |
| Material |                   |
| 30-1921 | |
| very suitable limited suitable | |
          |
| Ø d1 (h7) mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1 (h7) mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 4 | 1.8 | 54 | 4 | 12 | 5.8 | 83 | 12 | |
| 6 | 2.8 | 57 | 6 | 16 | 7.8 | 92 | 16 | |
| 8 | 3.8 | 63 | 8 | 20 | 9.8 | 104 | 20 | |
| 10 | 4.8 | 72 | 10 |
 |
|
 |
