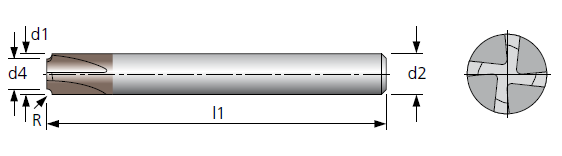

| HAM 40-2001 (HAM 468) solid carbide corner-rounding concave cutter |
|
Engineering data
• especially for chamfering |
 |
| Material |                   |
| 30-2001 | |
| very suitable limited suitable | |
         |
| Ø d1 mm |
l2 mm |
l1 mm |
r ± 0.05 mm |
Ø d4 - 0.1 mm |
Ø d2 (h6) mm |
Ø d1 mm |
l2 mm |
l1 mm |
r ± 0.05 mm |
Ø d4 - 0.1 mm |
Ø d2 (h6) mm |
|
| 6 | 9 | 70 | 0.5 | 5 | 6 | 12 | 18 | 75 | 3 | 6 | 12 | |
| 8 | 12 | 70 | 1 | 6 | 8 | 12 | 18 | 80 | 3.5 | 5 | 12 | |
| 8 | 12 | 75 | 1.5 | 5 | 8 | 16 | 24 | 80 | 4 | 8 | 16 | |
| 10 | 15 | 75 | 2 | 6 | 10 | 16 | 24 | 80 | 5 | 6 | 16 | |
| 10 | 15 | 75 | 2.5 | 5 | 10 | 20 | 30 | 80 | 6 | 8 | 20 |
 |
|
 |
