| HAM 462 | HAM 466 | HAM 467 | HAM 468 | HAM 465 |
 |
| HAM 40-2041 (HAM 465) solid carbide deburring and chamfering mill |
|
Engineering data
• forward- and backward chamfering |
 |
| Material |                   |
| 30-2041 | |
| very suitable limited suitable | |
         |

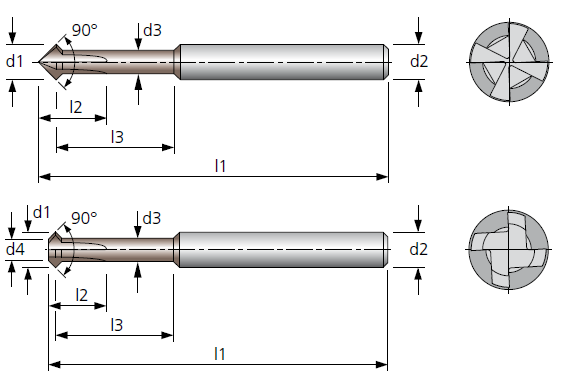

| Ø d1 (h10) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Ø d4 mm |
Ø d2 (h6) mm |
Ø d1 (h10) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Ø d4 mm |
Ø d2 (h6) mm |
|
| 2.8 | 3 | 11 | 2 | 75 | - | 6 | 5.8 | 6 | 20 | 4 | 100 | 3 | 6 | |
| 3.8 | 4 | 14 | 3 | 75 | - | 6 | 7.8 | 8 | 25 | 5.4 | 100 | 3.5 | 6 | |
| 4.8 | 5 | 16.5 | 4 | 75 | - | 6 | 9.8 | 9 | - | - | 100 | 5 | 6 |
 |
|
 |
