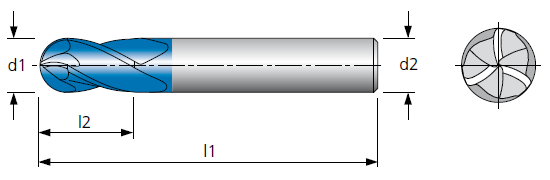

 HAM 40-5920   solid carbide ball nose end mill

   Engineering data
   • rake angle negative
   • centre cutting
   • reinforced web thickness
   • radius form tolerance 0.02

 Material
 40-5920
   very suitable     limited suitable



Ø d1
(f8)
mm		 l2

mm		 l1

mm		 Ø d2
(h6)
mm		   Ø d1
(f8)
mm		 l2

mm		 l1

mm		 Ø d2
(h6)
mm
2   5 50 6     8 14 100   8
3   8 60 6   10 18 100 10
4   8 70 6   12 22 110 12
5 10 80 6   16 30 140 16
6 12 90 6   20 38 160 20





We reserve the right to make technical changes.
