| HAM 40-5800 (HAM 469) solid carbide ball nose end mill |
|
Engineering data
• centre cutting • undercut machining • radius form tolerance 0.02 The current production will be changed to the version with MMP |
 |
| Material |             |
| 40-5800 | |
| very suitable limited suitable | |
            |

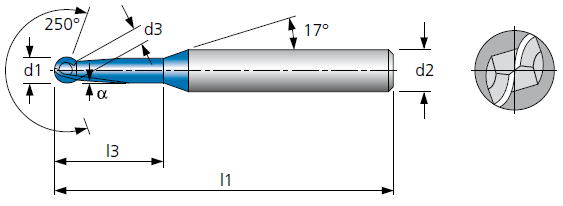

| Ø d1 (f8) mm |
α | l3 mm |
Ø d3 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1 (f8) mm |
α | l3 mm |
Ø d3 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 1 | 1.5° | 20 | 0.7 | 80 | 6 | 5 | 1° | 40 | 4.1 | 90 | 6 | |
| 2 | 1.5° | 20 | 1.4 | 80 | 6 | 6 | − | 45 | 4.7 | 100 | 6 | |
| 3 | 1.5° | 30 | 2.1 | 80 | 6 | 8 | 1° | 45 | 6.5 | 100 | 8 | |
| 4 | 3° | 30 | 3.3 | 80 | 6 | 10 | 1° | 55 | 8.2 | 100 | 10 |
 |
|
 |
