| HAM 40-5400 (HAM 486) solid carbide toric end mill |
|

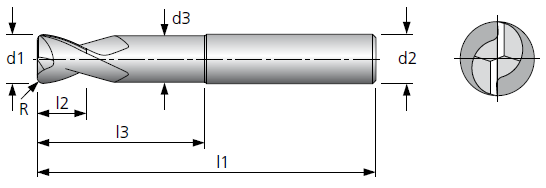

Engineering data
• special web thinning • up to Ø 4 mm reinforced shank • centre cutting • radius form tolerance 0.02 The current production will be changed to the version with MMP |
 |
| Material |         |
| 40-5400 | |
| very suitable limited suitable | |
             |
| Ø d1 (0/-0.01) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1 (0/-0.01) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 1/0.1 | 2 | 15 | 0.9 | 60 | 4 | 8/0.5 | 9 | 30 | 7.4 | 70 | 8 | |
| 2/0.2 | 3 | 20 | 1.8 | 60 | 4 | 8/1 | 9 | 30 | 7.4 | 70 | 8 | |
| 3/0.3 | 5 | 20 | 2.7 | 60 | 4 | 10/0.5 | 11 | 40 | 9.2 | 85 | 10 | |
| 4/0.5 | 5 | 20 | 3.7 | 60 | 4 | 10/1 | 11 | 40 | 9.2 | 85 | 10 | |
| 5/0.5 | 6 | 20 | 4.6 | 60 | 6 | 12/0.5 | 12 | 45 | 11 | 93 | 12 | |
| 6/0.5 | 7 | 25 | 5.5 | 65 | 6 | 12/1 | 12 | 45 | 11 | 93 | 12 | |
| 6/1 | 7 | 25 | 5.5 | 65 | 6 | 16/0.5 | 16 | 55 | 15 | 110 | 16 | |
| 16/2 | 16 | 55 | 15 | 110 | 16 |
 |
|
 |
