HAM 40-5460 solid carbide toric end mill |
Engineering data
• for thin-walled contours of aluminium and synthetic material • special web thinning • centre cutting • radius form tolerance 0.01 The current production will be changed to the version with MMP MMP from Ø d1 0.5 mm |
Material | |
40-5460 | |
very suitable limited suitable |

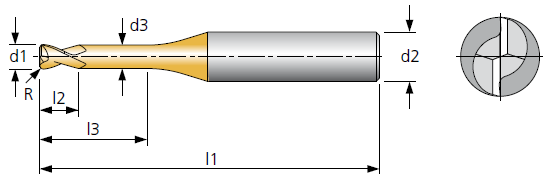

Ø d1/R (0/-0.01) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1/R (0/-0.01) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Ø d2 (h6) mm |
|
0.2/0.05 | 0.3 | 0.5 | 0.18 | 55 | 4 | 2.0/0.2 | 2.5 | 24 | 1.92 | 75 | 4 | |
0.2/0.05 | 0.3 | 1 | 0.18 | 55 | 4 | 2.0/0.2 | 2.5 | 30 | 1.92 | 75 | 4 | |
0.2/0.05 | 0.3 | 1.5 | 0.18 | 55 | 4 | 2.0/0.5 | 2.5 | 6 | 1.92 | 65 | 4 | |
0.3/0.05 | 0.45 | 1 | 0.28 | 55 | 4 | 2.0/0.5 | 2.5 | 10 | 1.92 | 65 | 4 | |
0.3/0.05 | 0.45 | 2 | 0.28 | 55 | 4 | 2.0/0.5 | 2.5 | 14 | 1.92 | 65 | 4 | |
0.3/0.05 | 0.45 | 3 | 0.28 | 55 | 4 | 2.0/0.5 | 2.5 | 18 | 1.92 | 65 | 4 | |
0.4/0.1 | 0.6 | 2 | 0.37 | 55 | 4 | 2.0/0.5 | 2.5 | 24 | 1.92 | 75 | 4 | |
0.4/0.1 | 0.6 | 3 | 0.37 | 55 | 4 | 2.0/0.5 | 2.5 | 30 | 1.92 | 75 | 4 | |
0.4/0.1 | 0.6 | 4 | 0.37 | 55 | 4 | 2.5/0.25 | 3.5 | 10 | 2.4 | 65 | 4 | |
0.5/0.1 | 0.7 | 3 | 0.47 | 55 | 4 | 2.5/0.25 | 3.5 | 20 | 2.4 | 65 | 4 | |
0.5/0.1 | 0.7 | 5 | 0.47 | 55 | 4 | 2.5/0.25 | 3.5 | 30 | 2.4 | 75 | 4 | |
0.5/0.1 | 0.7 | 8 | 0.47 | 55 | 4 | 3.0/0.2 | 5 | 6 | 2.9 | 65 | 4 | |
0.6/0.1 | 0.9 | 3 | 0.57 | 55 | 4 | 3.0/0.2 | 5 | 10 | 2.9 | 65 | 4 | |
0.6/0.1 | 0.9 | 5 | 0.57 | 55 | 4 | 3.0/0.2 | 5 | 14 | 2.9 | 65 | 4 | |
0.6/0.1 | 0.9 | 8 | 0.57 | 55 | 4 | 3.0/0.2 | 5 | 18 | 2.9 | 65 | 4 | |
0.8/0.2 | 1.1 | 4 | 0.76 | 55 | 4 | 3.0/0.2 | 5 | 24 | 2.9 | 75 | 4 | |
0.8/0.2 | 1.1 | 6 | 0.76 | 55 | 4 | 3.0/0.2 | 5 | 30 | 2.9 | 75 | 4 | |
0.8/0.2 | 1.1 | 8 | 0.76 | 55 | 4 | 3.0/0.5 | 5 | 6 | 2.9 | 65 | 4 | |
0.8/0.2 | 1.1 | 10 | 0.76 | 55 | 4 | 3.0/0.5 | 5 | 10 | 2.9 | 65 | 4 | |
1.0/0.2 | 1.5 | 6 | 0.95 | 55 | 4 | 3.0/0.5 | 5 | 14 | 2.9 | 65 | 4 | |
1.0/0.2 | 1.5 | 10 | 0.95 | 55 | 4 | 3.0/0.5 | 5 | 18 | 2.9 | 65 | 4 | |
1.0/0.2 | 1.5 | 14 | 0.95 | 55 | 4 | 3.0/0.5 | 5 | 24 | 2.9 | 75 | 4 | |
1.0/0.2 | 1.5 | 18 | 0.95 | 55 | 4 | 3.0/0.5 | 5 | 30 | 2.9 | 75 | 4 | |
1.0/0.2 | 1.5 | 24 | 0.95 | 60 | 4 | 4.0/0.5 | 6 | 10 | 3.9 | 65 | 6 | |
1.2/0.2 | 1.6 | 6 | 1.15 | 55 | 4 | 4.0/0.5 | 6 | 14 | 3.9 | 65 | 6 | |
1.2/0.2 | 1.6 | 10 | 1.15 | 55 | 4 | 4.0/0.5 | 6 | 18 | 3.9 | 65 | 6 | |
1.2/0.2 | 1.6 | 14 | 1.15 | 55 | 4 | 4.0/0.5 | 6 | 24 | 3.9 | 75 | 6 | |
1.2/0.2 | 1.6 | 18 | 1.15 | 55 | 4 | 4.0/0.5 | 6 | 30 | 3.9 | 75 | 6 | |
1.2/0.2 | 1.6 | 24 | 1.15 | 60 | 4 | 5.0/0.5 | 7.5 | 10 | 4.9 | 65 | 6 | |
1.5/0.2 | 2 | 6 | 1.44 | 55 | 4 | 5.0/0.5 | 7.5 | 20 | 4.9 | 65 | 6 | |
1.5/0.2 | 2 | 10 | 1.44 | 55 | 4 | 5.0/0.5 | 7.5 | 30 | 4.9 | 75 | 6 | |
1.5/0.2 | 2 | 14 | 1.44 | 55 | 4 | 5.0/0.5 | 7.5 | 40 | 4.9 | 90 | 6 | |
1.5/0.2 | 2 | 18 | 1.44 | 55 | 4 | 6.0/0.5 | 10 | 12 | 5.9 | 65 | 6 | |
1.5/0.2 | 2 | 24 | 1.44 | 60 | 4 | 6.0/0.5 | 10 | 20 | 5.9 | 65 | 6 | |
2.0/0.2 | 2.5 | 6 | 1.92 | 65 | 4 | 6.0/0.5 | 10 | 30 | 5.9 | 75 | 6 | |
2.0/0.2 | 2.5 | 10 | 1.92 | 65 | 4 | 6.0/0.5 | 10 | 40 | 5.9 | 90 | 6 | |
2.0/0.2 | 2.5 | 14 | 1.92 | 65 | 4 | 6.0/0.5 | 10 | 50 | 5.9 | 90 | 6 | |
2.0/0.2 | 2.5 | 18 | 1.92 | 65 | 4 |
|
