Tapping collets |
 |

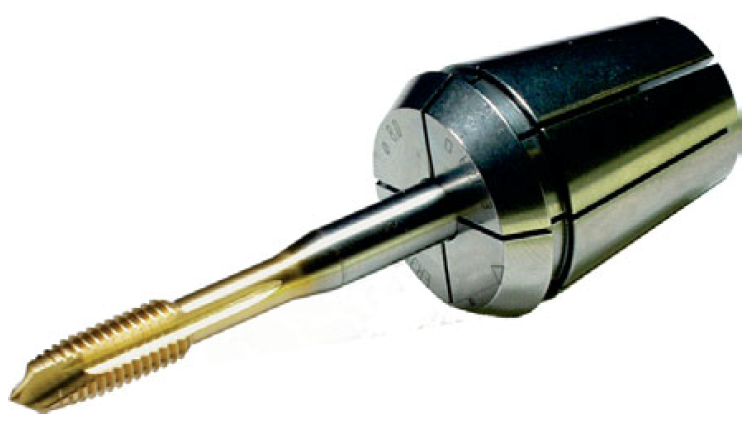

| Tapping collets rego-fix Delivery without tool |
 |
||||||
| ER 16-GB | ER 25-GB | ER 32-GB | ER 40-GB | ||||
| Art.-Nr. | Shaft ø x | Art.-Nr. | Shaft ø x | Art.-Nr. | Shaft ø x | Art.-Nr. | Shaft ø x |
| GB116045 | ø4.5x3.4 | GB125045 | ø4.5x3.4 | GB132045 | ø4.5x 3.4 | GB140070 | ø7.0x 5.5 |
| GB116055 | ø5.5x4.3 | GB125055 | ø5.5x4.3 | GB132055 | ø5.5x 4.3 | GB140080 | ø8.0x 6.2 |
| GB116060 | ø6.0x4.9 | GB125060 | ø6.0x4.9 | GB132060 | ø6.0x 4.9 | GB140090 | ø9.0x 7.0 |
| GB116070 | ø7.0x5.5 | GB125070 | ø7.0x5.5 | GB132070 | ø7.0x 5.5 | GB140100 | ø10.0x 8.0 |
| ER 20-GB | GB125080 | ø8.0x6.2 | GB132080 | ø8.0x 6.2 | GB140110 | ø11.0x 9.0 | |
| GB120045 | ø4.5x3.4 | GB125090 | ø9.0x7.0 | GB132090 | ø9.0x 7.0 | GB140120 | ø12.0x 9.0 |
| GB120055 | ø5.5x4.3 | GB125100 | ø10.0x8.0 | GB132100 | ø10.0x 8.0 | GB140140 | ø14.0x11.0 |
| GB120060 | ø6.0x4.9 | GB125110 | ø11.0x9.0 | GB132110 | ø11.0x 9.0 | GB140160 | ø16.0x12.0 |
| GB120070 | ø7.0x5.5 | GB125120 | ø12.0x9.0 | GB132120 | ø12.0x 9.0 | GB140180 | ø18.0x14.5 |
| GB120080 | ø8.0x6.2 | GB132140 | ø14.0x11.0 | GB140200 | ø20.0x16.0 | ||
| GB120090 | ø9.0x7.0 | GB132160 | ø16.0x12.0 | GB140220 | ø22.0x18.0 | ||
| GB120100 | ø10.0x8.0 | ||||||

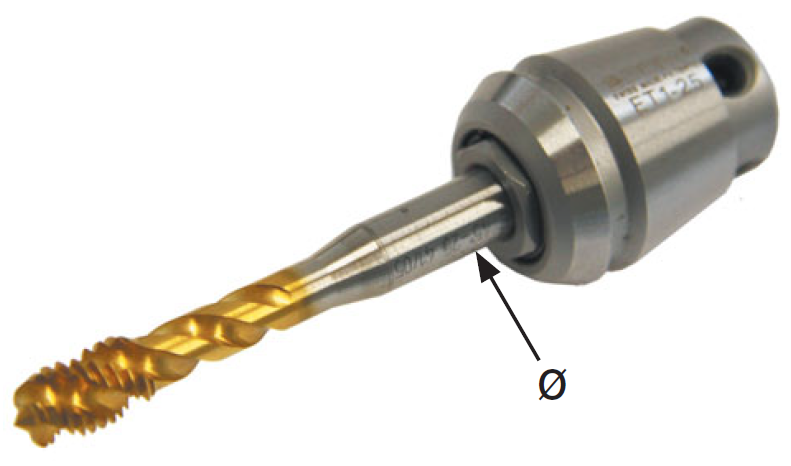

| Tapping collets PCM ET1 with compensation Delivery without tool |
 |
||||||
| ET1-16 | ET1-20 | ET1-25 | ET1-32 | ET1-40 | |||||
| Art.-Nr. | Shaft | Art.-Nr. | Shaft | Art.-Nr. | Shaft | Art.-Nr. | Shaft | Art.-Nr. | Shaft |
| ET1-16280 | ø2.8 | ET1-20280 | ø2.8 | ET1-25280 | ø2.8 | ET1-32450 | ø4.5 | ET1-40600 | ø6.0 |
| ET1-16300 | ø3.0 | ET1-20300 | ø3.0 | ET1-25300 | ø3.0 | ET1-32500 | ø5.0 | ET1-40700 | ø7.0 |
| ET1-16350 | ø3.5 | ET1-20350 | ø3.5 | ET1-25350 | ø3.5 | ET1-32550 | ø5.5 | ET1-40800 | ø8.0 |
| ET1-16400 | ø4.0 | ET1-20400 | ø4.0 | ET1-25400 | ø4.0 | ET1-32600 | ø6.0 | ET1-40850 | ø8.5 |
| ET1-16450 | ø4.5 | ET1-20450 | ø4.5 | ET1-25450 | ø4.5 | ET1-32700 | ø7.0 | ET1-40900 | ø9.0 |
| ET1-16500 | ø5.0 | ET1-20500 | ø5.0 | ET1-25500 | ø5.0 | ET1-32800 | ø8.0 | ET1-40100 | ø10.0 |
| ET1-16550 | ø5.5 | ET1-20550 | ø5.5 | ET1-25550 | ø5.5 | ET1-32850 | ø8.5 | ET1-40105 | ø10.5 |
| ET1-16600 | ø6.0 | ET1-20600 | ø6.0 | ET1-25600 | ø6.0 | ET1-32900 | ø9.0 | ET1-40110 | ø11.0 |
| ET1-20700 | ø7.0 | ET1-25700 | ø7.0 | ET1-32100 | ø10.0 | ET1-40120 | ø12.0 | ||
| ET1-25800 | ø8.0 | ET1-32105 | ø10.5 | ET1-40125 | ø12.5 | ||||
| ET1-25850 | ø8.5 | ET1-32110 | ø11.0 | ET1-40140 | ø14.0 | ||||
| ET1-25900 | ø9.0 | ET1-32120 | ø12.0 | ET1-40150 | ø15.0 | ||||
| ET1-25100 | ø10.0 | ET1-32125 | ø12.5 | ET1-40160 | ø16.0 | ||||
| ET1-40170 | ø17.0 | ||||||||
 |
|
 |
