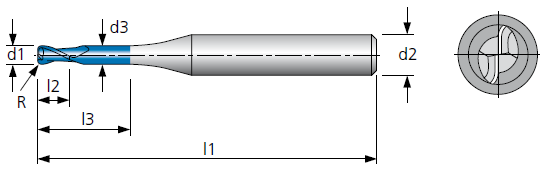

| HAM 40-5360 (HAM 417) solid carbide toric end mill |
|
Engineering data
• reduced neck • centre cutting • radius form tolerance 0.02 The current production will be changed to the version with MMP |
 |
| Material |            |
| 40-5360 | |
| very suitable limited suitable | |
             |
| Ø d1/R (e8) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1/R (e8) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 0.5/0.05 | 0.7 | 2 | 0.48 | 45 | 4 | 2.0/0.2 | 2.8 | 10 | 1.95 | 60 | 4 | |
| 0.5/0.05 | 0.7 | 6 | 0.48 | 45 | 4 | 2.0/0.2 | 2.8 | 15 | 1.95 | 60 | 4 | |
| 0.6/0.06 | 0.9 | 2 | 0.57 | 45 | 4 | 2.0/0.2 | 2.8 | 20 | 1.95 | 60 | 4 | |
| 0.6/0.06 | 0.9 | 8 | 0.57 | 45 | 4 | 2.5/0.25 | 3.5 | 8 | 2.4 | 60 | 4 | |
| 0.8/0.08 | 1.2 | 4 | 0.77 | 45 | 4 | 2.5/0.25 | 3.5 | 15 | 2.4 | 60 | 4 | |
| 0.8/0.08 | 1.2 | 6 | 0.77 | 45 | 4 | 3.0/0.3 | 4 | 10 | 2.9 | 60 | 6 | |
| 0.8/0.08 | 1.2 | 8 | 0.77 | 45 | 4 | 3.0/0.3 | 4 | 15 | 2.9 | 60 | 6 | |
| 1.0/0.1 | 1.6 | 6 | 0.95 | 45 | 4 | 3.0/0.3 | 4 | 20 | 2.9 | 65 | 6 | |
| 1.0/0.1 | 1.6 | 10 | 0.95 | 45 | 4 | 3.0/0.3 | 4 | 25 | 2.9 | 65 | 6 | |
| 1.0/0.1 | 1.6 | 15 | 0.95 | 45 | 4 | 4.0/0.5 | 5 | 15 | 3.9 | 70 | 6 | |
| 1.2/0.12 | 1.9 | 6 | 1.15 | 50 | 4 | 4.0/0.5 | 5 | 20 | 3.9 | 70 | 6 | |
| 1.2/0.12 | 1.9 | 12 | 1.15 | 50 | 4 | 4.0/0.5 | 5 | 25 | 3.9 | 70 | 6 | |
| 1.5/0.15 | 2.4 | 6 | 1.45 | 55 | 4 | 5.0/0.5 | 6 | 15 | 4.9 | 70 | 6 | |
| 1.5/0.15 | 2.4 | 8 | 1.45 | 55 | 4 | 5.0/0.5 | 6 | 20 | 4.9 | 70 | 6 | |
| 1.5/0.15 | 2.4 | 15 | 1.45 | 55 | 4 | 5.0/0.5 | 6 | 25 | 4.9 | 70 | 6 | |
| 1.5/0.15 | 2.4 | 20 | 1.45 | 55 | 4 | 6.0/0.5 | 9 | 32 | 5.8 | 75 | 6 | |
| 2.0/0.2 | 2.8 | 6 | 1.95 | 60 | 4 | 6.0/1 | 9 | 32 | 5.8 | 75 | 6 |
 |
|
 |
