| HAM 40-5500 solid carbide toric end mill |
|
Engineering data
• reinforced web thickness • very good for deep contours • low vibrations • centre cutting • up to Ø 6.0 mm radius form tolerance 0.01 • from Ø 7.0 mm radius form tolerance 0.02 The current production will be changed to the version with MMP |
 |
| Material |            |
| 40-5500 | |
| very suitable limited suitable | |
            |

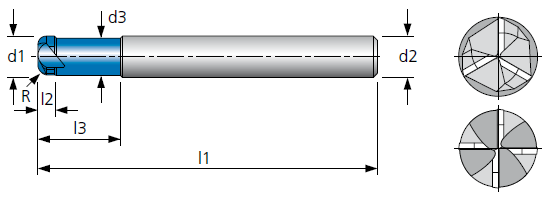

| Ø d1/R (e8) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Z |
Ø d2 (h6) mm |
Ø d1/R (e8) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Z |
Ø d2 (h6) mm |
|
| 2/0.5 | 0.8 | 5 | 1.8 | 60 | 3 | 6 | 10/2 | 4 | 40 | 9 | 75 | 4 | 10 | |
| 3/0.75 | 1.2 | 7.5 | 2.7 | 60 | 4 | 6 | 10/2 | 4 | 20 | 9 | 104 | 4 | 10 | |
| 4/1 | 1.6 | 10 | 3.6 | 70 | 4 | 6 | 11/2 | 4.5 | — | — | 104 | 4 | 10 | |
| 5/1.2 | 2 | 12.5 | 4.5 | 80 | 4 | 6 | 12/3 | 5 | 48 | 11 | 83 | 4 | 12 | |
| 6/1.5 | 2.5 | 24 | 5.4 | 55 | 4 | 6 | 12/3 | 5 | 24 | 11 | 104 | 4 | 12 | |
| 6/1.5 | 2.5 | 12 | 5.4 | 90 | 4 | 6 | 13/3 | 5.5 | — | — | 104 | 4 | 12 | |
| 7/1.5 | 3 | — | — | 90 | 4 | 6 | 16/4 | 6.5 | 28 | 14 | 104 | 4 | 16 | |
| 8/2 | 3.5 | 32 | 7.2 | 65 | 4 | 8 | ||||||||
| 8/2 | 3.5 | 16 | 7.2 | 104 | 4 | 8 | ||||||||
| 9/2 | 4 | — | — | 104 | 4 | 8 |
 |
|
 |
