| HAM 40-5560 (HAM 419) solid carbide toric end mill |
|
Engineering data
• centre cutting • special web thinning • reinforced web thickness • radius form tolerance 0.02 The current production will be changed to the version with MMP |
 |
| Material |             |
| 40-5560 | |
| very suitable limited suitable | |
             |

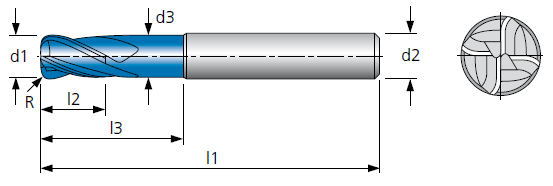

| Ø d1/R (0/-0.01) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1/R (0/-0.01) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 2/0.2 | 3 | 27 | 1.9 | 75 | 3 | 8/0.5 | 9 | 54 | 7.4 | 100 | 8 | |
| 2/0.2 | 3 | 27 | 1.9 | 75 | 4 | 8/1 | 9 | 54 | 7.4 | 100 | 8 | |
| 3/0.5 | 4 | 32 | 2.7 | 75 | 3 | 8/1.5 | 9 | 54 | 7.4 | 100 | 8 | |
| 3/0.5 | 4 | 32 | 2.7 | 75 | 4 | 8/2 | 9 | 54 | 7.4 | 100 | 8 | |
| 3/1 | 4 | 32 | 2.7 | 75 | 3 | 10/0.5 | 11 | 60 | 9.2 | 100 | 10 | |
| 3/1 | 4 | 32 | 2.7 | 75 | 4 | 10/1 | 11 | 60 | 9.2 | 100 | 10 | |
| 4/0.5 | 5 | 36 | 3.7 | 75 | 4 | 10/1.5 | 11 | 60 | 9.2 | 100 | 10 | |
| 4/1 | 5 | 36 | 3.7 | 75 | 4 | 10/2 | 11 | 60 | 9.2 | 100 | 10 | |
| 5/0.5 | 6 | 40 | 4.6 | 75 | 5 | 12/0.5 | 12 | 75 | 11 | 120 | 12 | |
| 5/0.5 | 6 | 40 | 4.6 | 75 | 6 | 12/1 | 12 | 75 | 11 | 120 | 12 | |
| 5/1 | 6 | 40 | 4.6 | 75 | 5 | 12/1.5 | 12 | 75 | 11 | 120 | 12 | |
| 5/1 | 6 | 40 | 4.6 | 75 | 6 | 12/2 | 12 | 75 | 11 | 120 | 12 | |
| 6/0.5 | 7 | 44 | 5.5 | 80 | 6 | 16/2 | 16 | 92 | 15 | 150 | 16 | |
| 6/1 | 7 | 44 | 5.5 | 80 | 6 | |||||||
| 6/1.5 | 7 | 44 | 5.5 | 80 | 6 |
 |
|
 |
