 HAM 40-5350  solid carbide roughing end mill

   Engineering data
   • special geometry with unequal
      helix, without knurling contour
   • for roughing with extremely high feed
   • high chipping volume (up to 1.5 x D)
   • very smooth running and very little
      vibrations during machining
   • cutting area geometrical balanced

   The current production will be
   changed to the version with MMP


 Material
 40-5350
                                               very suitable     limited suitable

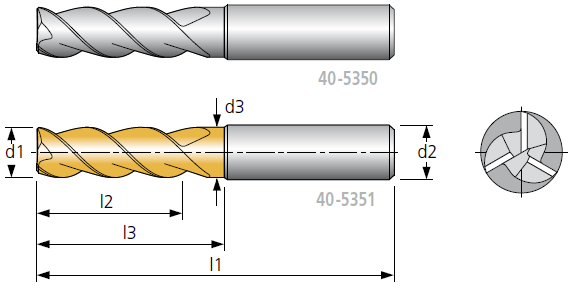

corner chamfer d1 b
≤ Ø 5
≥ Ø 6		 0.10
0.20



Ø d1
(h6)
mm		 l2

  mm  		 l3

  mm  		 Ø d3

  mm  		 l1

  mm  		 Ø d2
  (h6)
mm		   Ø d1
(h6)
mm		 l2

  mm  		 l3

  mm  		 Ø d3

  mm  		 l1

  mm  		 Ø d2
  (h6)
mm
  3   8 12 2.8   57   6   10 22   60   9.7 100 10
  4 11 18 3.8   57   6   12 26   36 11.7   83 12
  5 13 18 4.8   57   6   12 26   73 11.7 120 12
  6 13 18 5.8   57   6   16 32   42 15.6   92 16
  6 13 42 5.8   80   6   16 32 100 15.6 150 16

  8 19 25 7.7   63   8   20 38   52 19.6 104 20
  8 19 62 7.7 100   8   20 38 100 19.6 150 20
10 22 30 9.7   72 10





We reserve the right to make technical changes.
