40-5350   40-1691   HAM 403/406   HAM 445


 HAM 40-1691  solid carbide roughing end mill

   Engineering data
   • special geometry with unequal
      helix and pitch
   • for roughing with extremely high feed
   • high chipping volume (up to 1.5 x D)
   • very smooth running and very little
      vibrations during machining

 Material
 40-1691
        very suitable     limited suitable

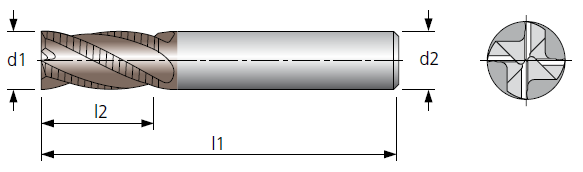

corner chamfer d1 b
≥ Ø 6 0.02 x d1



Ø d1
(f10)
mm		 l2

  mm  		 l1

  mm  		 Ø d2
  (h6)
mm		   Ø d1
(f10)
mm		 l2

  mm  		 l1

  mm  		 Ø d2
  (h6)
mm
  6 13 57   6   14 26   83 14
  8 19 63   8   16 32   92 16
10 22 72 10   20 38 104 20
12 26 83 12   25 38 110 25





We reserve the right to make technical changes.
