HAM 403/406

HAM 40-1681 (HAM 403/406) solid carbide roughing end mill

   Engineering data
   • centre cutting
   • flute with knurling contour
   • very smooth running

Material
40-1681
very suitable limited suitable

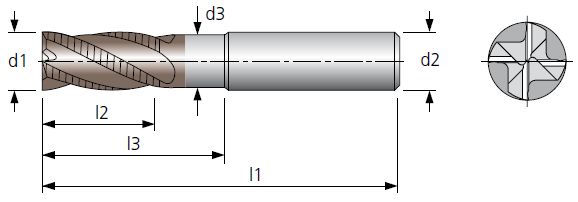

corner chamfer	d1	b
	≤ Ø 8 ≥ Ø 9	0.05 0.10

Ø d1 (f10) mm	l2 mm	l3 mm	Ø d3 mm	l1 mm	Z	Ø d2 (h6) mm		Ø d1 (f10) mm	l2 mm	l3 mm	Ø d3 mm	l1 mm	Z	Ø d2 (h6) mm
4	8	—	—	57	3	6		14	26	—	—	83	4	14
5	10	—	—	57	3	6		14	26	38	13.6	83	4	14
6	13	—	—	57	3	6		14	42	—	—	99	4	14
6	13	21	5.7	57	3	6		16	32	—	—	92	4	16
6	18	—	—	62	3	6		16	32	44	15.6	92	4	16

7	16	—	—	63	3	8		16	48	—	—	108	4	16
8	19	—	—	63	3	8		18	32	—	—	92	4	18
8	19	27	7.7	63	3	8		18	32	44	17.6	92	4	18
8	24	—	—	68	3	8		18	54	—	—	114	4	18
9	19	—	—	72	3	10		20	38	—	—	104	4	20

10	22	—	—	72	4	10		20	38	54	19.6	104	4	20
10	22	32	9.7	72	4	10		20	60	—	—	125	4	20
10	30	—	—	80	4	10		25	38	—	—	110	6	25
12	26	—	—	83	4	12		25	38	54	24.5	110	6	25
12	26	38	11.7	83	4	12		25	75	—	—	150	6	25

12	36	—	—	93	4	12

We reserve the right to make technical changes.
