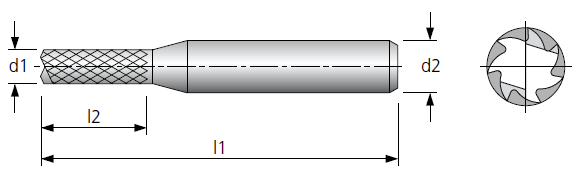

 HAM 40-1600  (HAM 445)  solid carbide router (upcut)

   Engineering data
   • right hand fluted,
      right hand cutting (upcut)
   • special diamondprofiled teeth

   Diamond coating for machining
   of graphit on request

 Material
 40-1600
                                  very suitable     limited suitable



Ø d1
(0.02/-0.02)
mm		 l2

  mm  		 l1

  mm  		     Z

    		 Ø d2
  (h6)
mm		   Ø d1
(0.02/-0.02)
mm		 l2

  mm  		 l1

  mm  		     Z

    		 Ø d2
  (h6)
mm
4 15 40   8 4        10 30   90 10 10
5 20 50 10 5        12 36 120 10 12
6 20 50 10 6        12.7 40 120 10 12.7
6.35 25 60 10 6.35   14 36   92 10 14
8 25 60 10 8        16 36   92 12 16

9.52 25 60 10 9.52   20 45 104 12 20



 Further geometries and point geometries on request

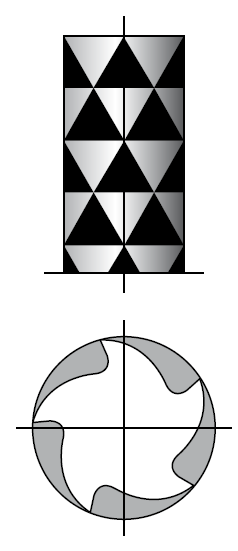

A-Point
straight end

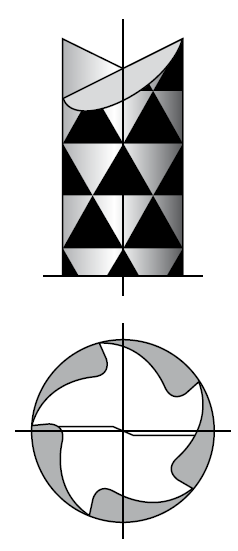

no end cut		 B-Point
fishtail

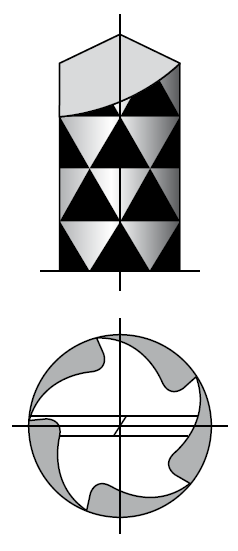

end cut		 D-Point
drill point		 E-Point

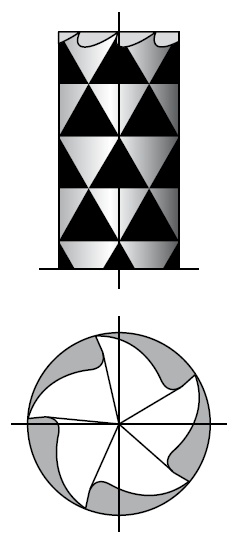

straight end

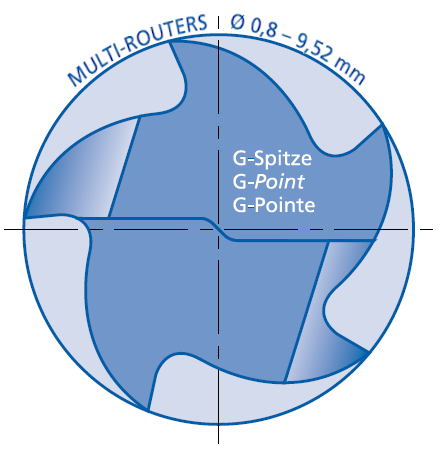

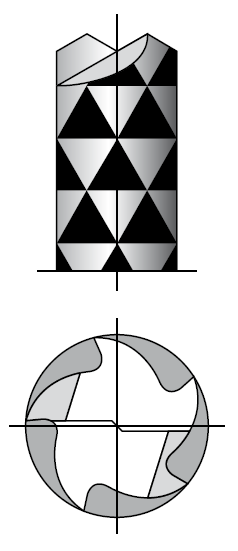

5 cutting edges		 G-Point
standard
end cut





We reserve the right to make technical changes.
