Accessories and spare parts

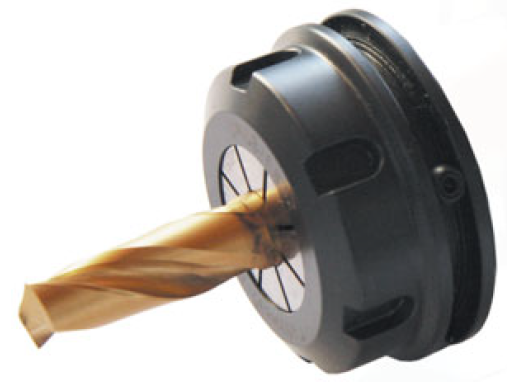

Clamping nuts DIN 6499 / DIN 6388
for balancing including 2 balancing
weights Art.- Nr. 600101
Delivery without collet and tool



Key

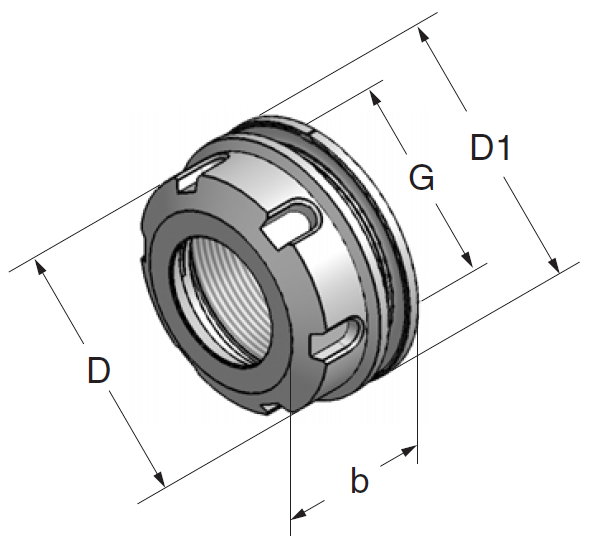

 Art.-Nr. Type D D1 b G Key Nm_max.
 725120-B ER25 42 46 24 M32x1.5 925180 130
 732120-B ER32 50 54 25 M40x1.5 932180 170
 740120-B ER40 63 64 27 M50x1.5 940180 220

 825120-B OZ25 63 63 30 M48x2.0 54668 200

Collet chucks in a balanced execution together with
the clamped tools cannot absolutely guarantee the
balance quality as desired for the cutting process in
a high revolution speed range. The newlydeveloped
collet nut types allow the balancing as a complete
unit after the clamping of the tool.

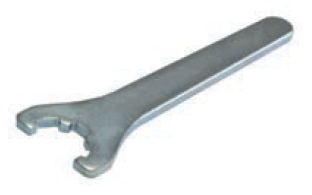

 Art.-Nr. Type for clamping nuts
 925180 E25 725120-B
 932180 E32 732120-B
 940180 E40 740120-B

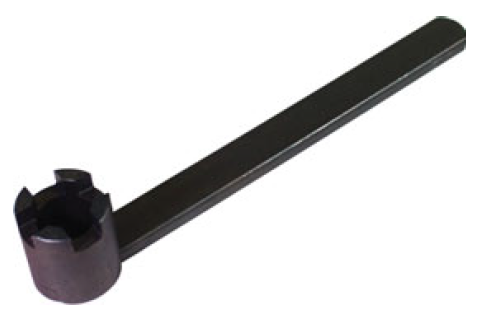

 54668 Hook Wrench 825120-B

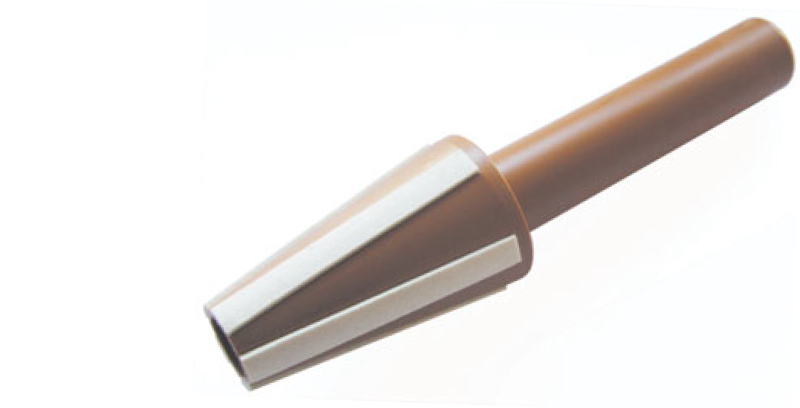

Cone cleaners SK


Art.-Nr. Type
284100 SK30
285100 SK40
286100 SK50

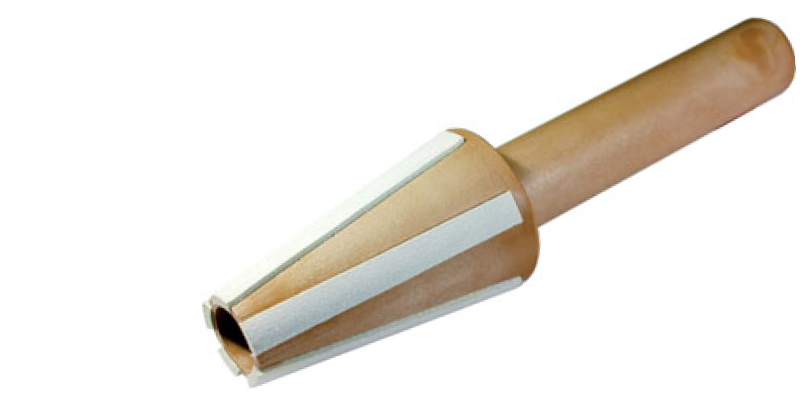

Cone cleaners MK


 Art.-Nr. Type
 341100 MK2
 342100 MK3
 343100 MK4
 344100 MK5


Drawn-in bolts
DIN 6367




 Art.-Nr. Type ø
163100 M  8 ø16
164100 M10 ø22
165100 M12 ø27
166100 M16 ø32
167100 M20 ø40
168100 M24 ø50




Keys DIN 6368


 Art.-Nr. ø
170101 ø16
171101 ø22
172101 ø27
173101 ø32
174101 ø40





Clamping screws Weldon


 Art.-Nr. Type Weldon-ø
147100 M  6x10     ø6
148100 M  8x10     ø8
149100 M10x12     ø10
150100 M12x16     ø12,ø14
151100 M14x16     ø16,ø18
152100 M16x16     ø20
153100 M18x2x20 ø25
154100 M20x2x20 ø32,ø40
329100 M24x2x25 ø50,ø60





We reserve the right to make technical changes.
