ISO Taper-toolholders without groove


Collet chucks DIN 6391 without groove for collets ER/ESX DIN 6388 /
ISO 10897


Taper angle AT3, Concentricity from the taper to the holding part < 0.005

SK-30 G 2.5 - 25,000 U/min. or U < 1 gmm
SK-40 G 2.5 - 20,000 U/min. or U < 1 gmm

Collets on inquiry

       DIN 69871

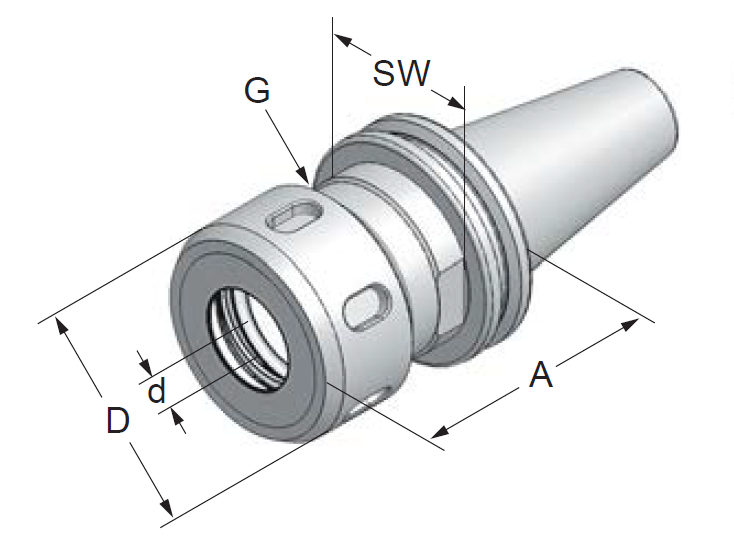

 Art.-Nr. Type Collet d D A SW G
 30.01.25.01 SK30xOZ25x70-AD 444E / 462E 2 - 25 60 70 36 M48x2.0

 40.01.16.01 SK40xOZ16x70-AD 410E / 415E 2 - 16 43 70 36 M33x1.5
 40.01.25.01 SK40xOZ25x70-AD 444E / 462E 2 - 25 60 70 46 M48x2.0


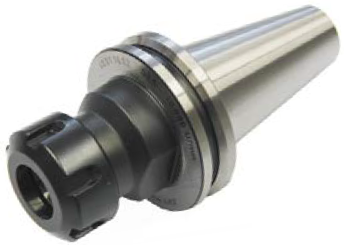

Collet chucks DIN 6391 without groove for collets ER/ESX DIN 6499 /
ISO 15488


Taper angle AT3, Concentricity from the taper to the holding part < 0.005

SK-30 G 2.5 - 25,000 U/min. or U < 1 gmm
SK-40 G 2.5 - 20,000 U/min. or U < 1 gmm

       DIN 69871
 Art.-Nr. Type Collet d D A SW G

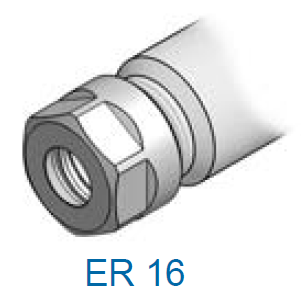

 30.01.10.02 SK30xER16x 70-AD  ER16 / 462E 1 - 10 28 70 24 M22x1.5
 30.01.10.022 SK30xER16x100-AD ER16 / 426E 1 - 10 28 100 24 M22x1.5
 30.01.16.02 SK30xER25x 70-AD  ER25 / 430E 2 - 16 42 70 27 M32x1.5
 30.01.16.022 SK30xER25x100-AD ER25 / 430E 2 - 16 42 100 27 M32x1.5
 30.01.20.02 SK30xER32x 70-AD  ER32 / 470E 3 - 20 50 70 36 M40x1.5
 30.01.20.022 SK30xER32x100-AD ER32 / 470E 3 - 20 50 100 36 M40x1.5
 30.01.26.02 SK30xER40x 70-AD  ER40 / 472E 4 - 26 63 70 41 M50x1.5

 40.01.16.02 SK40xER25x 70-AD  ER25 / 430E 2 - 16 42 70 36 M32x1.5
 40.01.20.02 SK40xER32x 70-AD  ER32 / 470E 3 - 20 50 70 36 M40x1.5
 40.01.26.02 SK40xER40x 70-AD  ER40 / 472E 4 - 26 63 70 46 M50x1.5





We reserve the right to make technical changes.
