Cooling Lubricant Preparation  (Centrifugal System)

The Problem :

With modern, highly productive
processing machines, down times
give rise to enormous costs.

The fine abrasion (sludge) created
by mechanical machining leads to
high tool wear.

Renewal of the cooling lubricants
is unavoidable.

Our Solution :

  Centrifuges guarantee the optimal state
      of the cooling lubricant.
  Separation of oil and solid material from
      the emulsion with the 3-phase centrifuge.
  Separation of solid material from the
      cooling lubricant with the 2-phase
  The solid material dried at maximum speed
      (patented) can be disposed of with the
      swarf- avoidance of special waste.

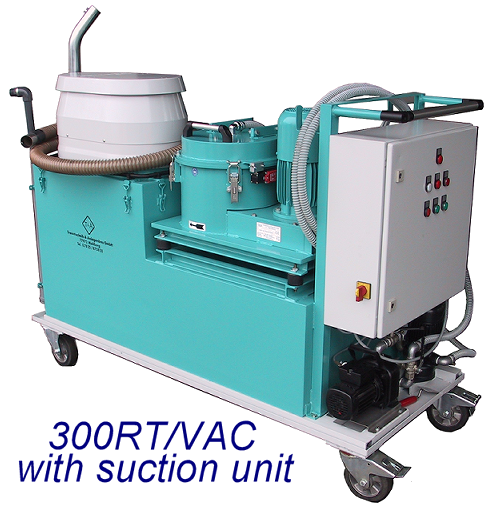

  These centrifuges can be optionally
      equipped with suction units in order
      additionally to suck the cooling lubricant
      from the tank of the processing machine
      and to clean the tank.

Our Advantages :

  No filter required

  Remove up to particle size of 3 µm

  No staging needed for the used coolant

Tornado Series 200 / 300 / 400

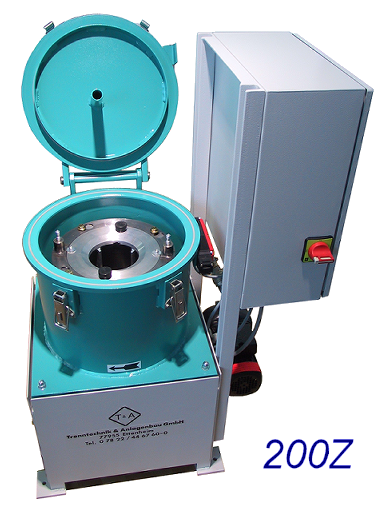

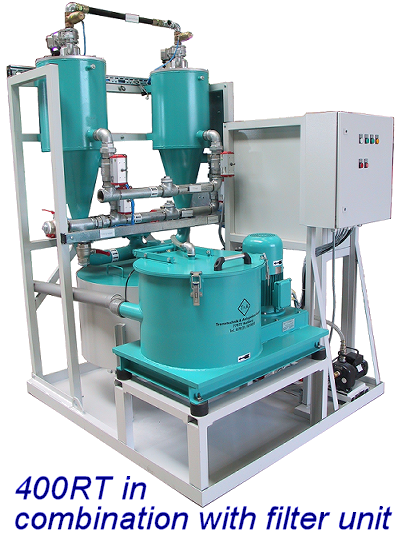

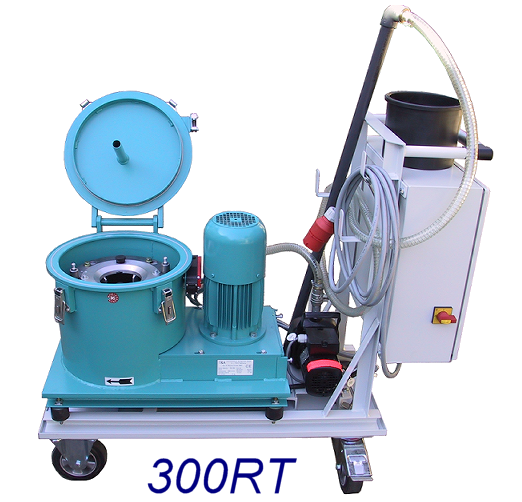

Tornado 200 Z 200 RT 200 TRT 300 RT 300 TRT 400 RT 400 TRT
 Drive power kW 2.2 2.2 2.2 3 3 4 4
 Rotor Speed rpm 3000 3900/4300 3900/4300 3000/3500 3000/3500 2500/3000 2500/3000
 Solid material
 volume dm3
4 4 4 8 8 12 12
 Separation factor g 980 1700/2070 1700/2070 1500/2050 1500/2050 1400/2010 1400/2010
 Throughput ltr./min 60 60 10-15 120 15-20 150 15-20
  RT = 2-phase separation     TRT = 3-phase separation
  All centrifuges can be supplied with suction unit and feed tank.
  Please contact us for customized solutions.

The drum lid fastening developed
and patented by T&A guarantees
maximum work safety.

We reserve the right to make technical changes.
