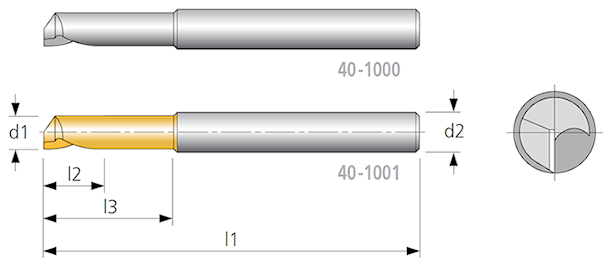

HAM 40-1000 (HAM 491) solid carbide end mill |
Engineering data
• centre cutting • rake angle very positive • big chip space • especially for machining of plastics |
Material | |
40-1000 | |
40-1001 | |
very suitable limited suitable |
Ø d1 (f10) mm |
l2 mm |
l3 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1 (f10) mm |
l2 mm |
l3 mm |
l1 mm |
Ø d2 (h6) mm |
|
0.3 | 2 | 3 | 38 | 3 | 2.5 | 9 | 12 | 38 | 3 | |
0.4 | 2.5 | 3.5 | 38 | 3 | 3 | 12 | 13 | 38 | 3 | |
0.6 | 2.5 | 3.5 | 38 | 3 | 4 | 12 | 15 | 50 | 6 | |
0.8 | 4 | 5 | 38 | 3 | 5 | 14 | 17 | 50 | 6 | |
1 | 4 | 5 | 38 | 3 | 6 | 16 | 17 | 50 | 6 | |
1.2 | 5 | 6 | 38 | 3 | 8 | 20 | 21 | 60 | 8 | |
1.5 | 6 | 7 | 38 | 3 | 10 | 22 | 23 | 70 | 10 | |
1.6 | 6 | 7 | 38 | 3 | ||||||
1.8 | 7 | 10 | 38 | 3 | ||||||
2 | 8 | 11 | 38 | 3 |
|
