HAM 40-5490 solid carbide end mill |
Engineering data
• special geometry with unequal helix • high chipping volume (up to 1.5 x D) • very smooth running and very little vibrations during machining • radius form tolerance 0.02 • cutting area geometrical balanced The current production will be changed to the version with MMP |
|

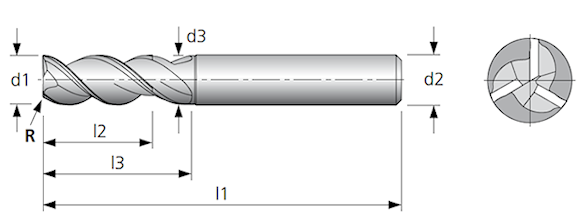

Ø d1/R (f8) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1/R (f8) mm |
l2 mm |
l3 mm |
Ø d3 mm |
l1 mm |
Ø d2 (h6) mm |
|
3/0.5 | 8 | 12 | 2.8 | 57 | 6 | 12/0.5 | 26 | 36 | 11.7 | 83 | 12 | |
4/0.5 | 11 | 18 | 3.8 | 57 | 6 | 12/1 | 26 | 73 | 11.7 | 83 | 12 | |
4/1 | 11 | 18 | 3.8 | 57 | 6 | 12/2 | 26 | 73 | 11.7 | 83 | 12 | |
5/0.5 | 13 | 18 | 4.8 | 57 | 6 | 16/0.5 | 32 | 42 | 15.6 | 92 | 16 | |
5/1 | 13 | 18 | 4.8 | 57 | 6 | 16/1 | 32 | 42 | 15.6 | 92 | 16 | |
6/0.5 | 13 | 18 | 5.8 | 57 | 6 | 16/2 | 32 | 42 | 15.6 | 92 | 16 | |
6/1 | 13 | 18 | 5.8 | 57 | 6 | 16/3 | 32 | 42 | 15.6 | 92 | 16 | |
8/0.5 | 19 | 25 | 7.7 | 63 | 8 | 20/0.5 | 38 | 52 | 19.6 | 104 | 20 | |
8/1 | 19 | 25 | 7.7 | 63 | 8 | 20/1 | 38 | 52 | 19.6 | 104 | 20 | |
8/2 | 19 | 25 | 7.7 | 63 | 8 | 20/2 | 38 | 52 | 19.6 | 104 | 20 | |
10/0.5 | 22 | 30 | 9.7 | 72 | 10 | 20/3 | 38 | 52 | 19.6 | 104 | 20 | |
10/1 | 22 | 30 | 9.7 | 72 | 10 | |||||||
10/2 | 22 | 30 | 9.7 | 72 | 10 |
|
