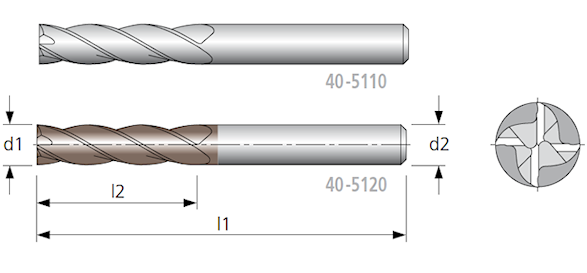

HAM 40-5110 (HAM 409) solid carbide end mill |
Engineering data
• centre cutting • long cutting length • reinforced web thickness
|
The current production will be changed to the version with MMP |
Material | |
40-5110/40-5130 | |
40-5120/40-5140 | |
very suitable limited suitable |
Ø d1 (e8) mm |
l2 mm |
l1 mm |
Z | Ø d2 (h6) mm |
Ø d1 (e8) mm |
l2 mm |
l1 mm |
Z | Ø d2 (h6) mm |
|
6 | 40 | 100 | 4 | 6 | 20 | 55 | 125 | 4 | 20 | |
8 | 40 | 100 | 4 | 8 | 20 | 80 | 150 | 4 | 20 | |
10 | 40 | 100 | 4 | 10 | 20 | 110 | 180 | 4 | 20 | |
12 | 45 | 100 | 4 | 12 | 25 | 55 | 125 | 6 | 25 | |
14 | 45 | 100 | 4 | 14 | 25 | 80 | 150 | 6 | 25 | |
14 | 65 | 150 | 4 | 14 | 25 | 110 | 180 | 6 | 25 | |
16 | 45 | 100 | 4 | 16 | 25 | 150 | 230 | 6 | 25 | |
16 | 65 | 150 | 4 | 16 | 32 | 110 | 180 | 6 | 32 | |
18 | 50 | 125 | 4 | 18 | ||||||
18 | 65 | 150 | 4 | 18 |
|
