 HAM 40-5091  solid carbide end mill


Engineering data
• special geometry with unequal helix
• high chipping volume
• very smooth running
• centre cutting
• cutting area geometrical balanced

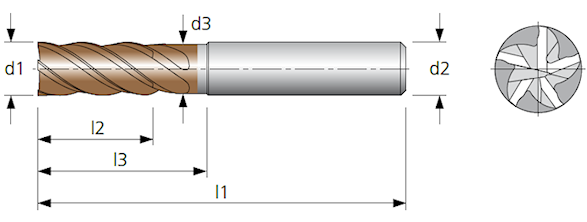

corner chamfer d1 b
≥ Ø 6 0.02 x d1
The current production will be
changed to the version with MMP

 Material
 40-5091
   very suitable     limited suitable



Ø d1
(e8)
mm		 l2

  mm  		 l3

  mm  		 Ø d3

  mm  		 l1

  mm  		 Ø d2
  (h6)
mm		   Ø d1
(e8)
mm		 l2

  mm  		 l3

  mm  		 Ø d3

  mm  		 l1

  mm  		 Ø d2
  (h6)
mm
  6 13 21 5.8 57   6   12 26 38 11.5   83 12
  8 19 27 7.5 63   8   16 32 44 15.5   92 16
10 22 32 9.5 72 10   20 38 54 19.5 104 20

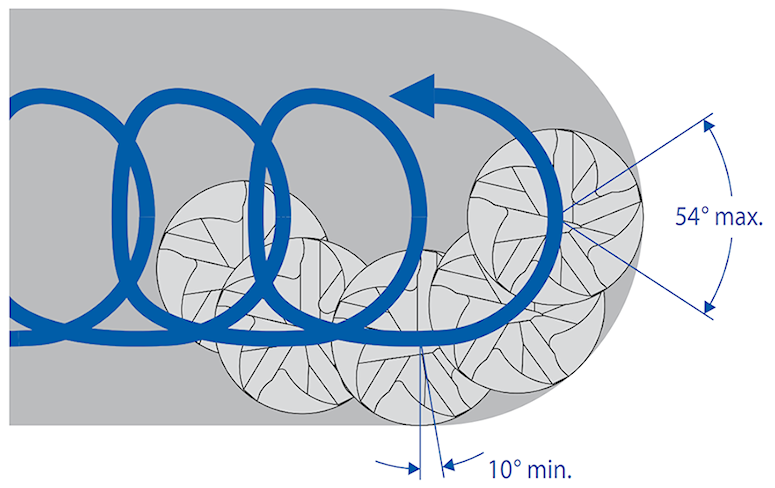

Particularly suitable for Trochoidal and Highspeed milling
Overlapping of feed motion with a circular movement
