 HAM 40-5291  solid carbide end mill


Engineering data
• special geometry with unequal helix
• special chip breaker for short chips
• high chipping volume
• very smooth running
• centre cutting
• cutting area geometrical balanced

corner chamfer d1 b
≥ Ø 10 0.02 x d1

 Material
 40-5291
   very suitable     limited suitable

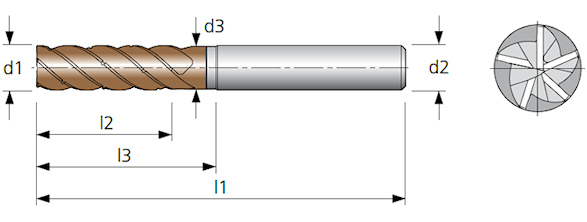

Ø d1
(e8)
mm		 l2

  mm  		 l1

  mm  		 Ø d2
  (h6)
mm		   Ø d1
(e8)
mm		 l2

  mm  		 l1

  mm  		 Ø d2
  (h6)
mm
10 40   86 10   16 64 125 16
12 48 100 12   20 80 145 20


Particularly suitable for Trochoidal and Highspeed milling
Overlapping of feed motion with a circular movement





We reserve the right to make technical changes.
