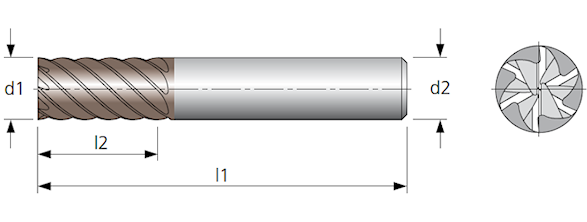

HAM 40-1561 (HAM 432/433/439) solid carbide end mill |
Engineering data
• rake angle 10° – 12° • especially for finishing machining • reinforced web thickness
|
The current production will be changed to the version with MMP |
Material | |
40-1561 | |
very suitable limited suitable |
Ø d1 (e8) mm |
l2 mm |
l1 mm |
Z | Ø d2 (h6) mm |
Ø d1 (e8) mm |
l2 mm |
l1 mm |
Z | Ø d2 (h6) mm |
|
6 | 13 | 57 | 6 | 6 | 16 | 48 | 108 | 6 | 16 | |
6 | 18 | 62 | 6 | 6 | 16 | 63 | 123 | 8 | 16 | |
8 | 19 | 63 | 6 | 8 | 16 | 80 | 135 | 8 | 16 | |
8 | 24 | 68 | 6 | 8 | 18 | 32 | 92 | 8 | 18 | |
10 | 22 | 72 | 6 | 10 | 18 | 54 | 114 | 8 | 18 | |
10 | 30 | 80 | 6 | 10 | 20 | 38 | 104 | 8 | 20 | |
10 | 45 | 95 | 6 | 10 | 20 | 60 | 125 | 8 | 20 | |
12 | 26 | 83 | 6 | 12 | 20 | 75 | 141 | 8 | 20 | |
12 | 36 | 93 | 6 | 12 | 20 | 100 | 166 | 8 | 20 | |
12 | 53 | 110 | 6 | 12 | 20 | 125 | 191 | 8 | 20 | |
14 | 26 | 83 | 6 | 14 | 25 | 40 | 110 | 8 | 25 | |
14 | 42 | 99 | 6 | 14 | 25 | 75 | 150 | 8 | 25 | |
16 | 32 | 92 | 6 | 16 | 32 | 40 | 110 | 8 | 32 |
|
