APPLICATION Proven geared scroll chuck made of special cast iron for use in areas requiring high clamping forces, high concentricity as well as reliable long-term repeatability. For universal use on lathes, rotary tables, dividing units, etc.

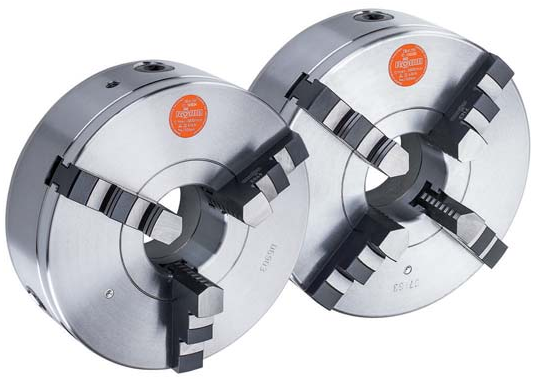

TYPE Geared scroll chucks in cast iron design. Special flat design with direct mounting. 3-jaw and 4-jaw version.
CUSTOMER BENEFITS • Optimal price/performance ratio • Special flat design for minimum interfering contours • The jaws can be adjusted over the entire clamping range by turning the key. This allows workpieces with different clamping diameters to be quickly clamped • Jaws in chuck ground out for concentricity
TECHNICAL FEATURES - With one set each of one-piece outward- and inward stepped jaws - Vibration-damping body made of special cast iron - Spiral ring die-forged as well as balanced and hardened
|
