Lathe and grinding chucks

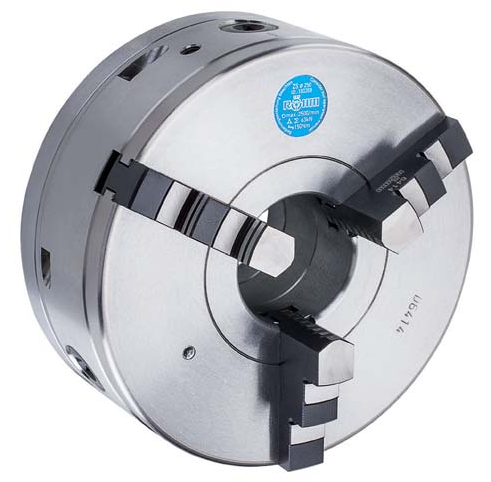

 ZS Hi-Tru  - with fine adjustment










APPLICATION
Optimized for machining workpieces which must be produced
with maximum concentricity.
Can be universally used, but is especially advantageous on
turning and grinding machines as well as dividing units.

TYPE
Lathe and grinding chuck in steel design with which the
workpiece can be adjusted very sensitively to the desired
concentricity via 3 tangentially arranged adjusting spindles.

CUSTOMER BENEFITS
• Radial fine adjustment for maximum concentricity
• Repeatability 0.015 mm
• Adjusting accuracy within 0.005 mm
• Precision adjustment without opening the
  mounting screws
• Jaws in chuck ground out for concentricity

TECHNICAL FEATURES
- With one set outside jaws and one set inside jaws
- Hardened adjusting spindles as well as their support surfaces
- Hardened spiral ring
- Steel take-up flange

ZS Hi-Tru = centric clamping, steel, maximum precision

A09

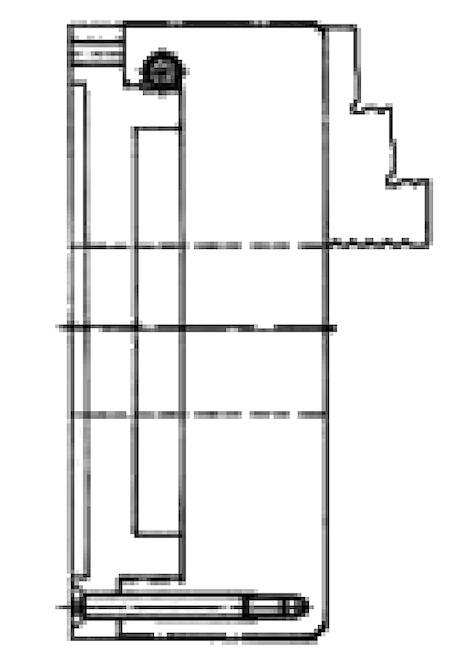

ZS Hi-Tru, with one set outward stepped jaws and one set inward
stepped jaws, DIN 6350, cylindrical centre mount, form A
 Item no.  Size  ZA  Through-hole mm  Speed
 max.
 min -1		  Torque
 Nm		  Total
 clamping
 force kN
 180259▲  80  56  19  7000  30  13
 180261  100  70  20  6300  60  27
 180263  125  95  32  5500  80  31
 180265  160  125  42  4600  110  47
 180267  200  160  55  4000  140  55
 180269  250  200  76  3000  150  63
 180271  315  260  103  2300  180  69
▲  on request
On request from size 125 with 6-jaws or with short-taper mount to ISO 702-3
(DIN 55027) or ISO 702-2 (DIN 55029) Camlock
Further sizes and mountings available on request

A09
ZS Hi-Tru, with special seal for grinding machines, DIN 6350,
cylindrical centre mount, form A
 Item no.  Size  ZA  Through-hole mm  Speed
 max.
 min -1		  Torque
 Nm		  Total
 clamping
 force kN
 180273▲  80  56    5000  30  13
 180275▲  100  70    4500  60  27
 180277▲  125  95  7  4000  80  31
 180279▲  160  125  7  3600  110  47
 180281▲  200  160  8  3000  140  55
 180283▲  250  200  10  2500  150  63
 180285▲  315  260  16  2000  180  69
▲  on request
On request from size 125 with 6-jaws or with short-taper mount to ISO 702-3
(DIN 55027) or ISO 702-2 (DIN 55029) Camlock

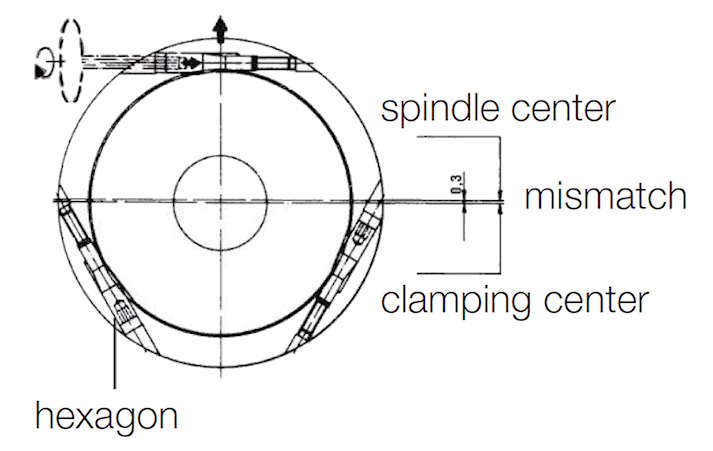

Fine adjustment


We reserve the right to make technical changes.
