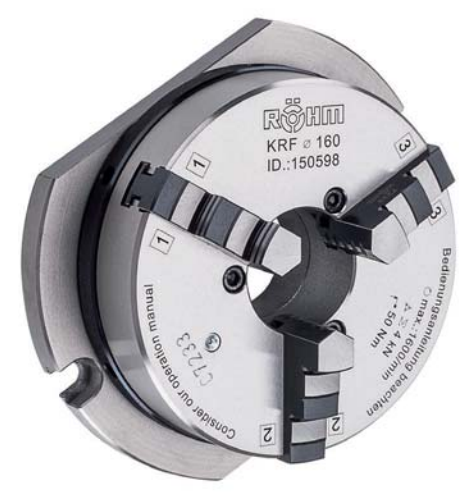

Lever scroll chucks KRF - on base plate |
  |
      |
APPLICATION 3-jaw chuck with base plate for positioning and conveying workpieces, e.g. on measuring machines. TYPE Lever scroll chuck in cast iron version. CUSTOMER BENEFITS • Easy clamping of the workpiece by turning the clamping ring • Sizes 125 - 200: incl. 4 setscrews for fine adjustment • Cast iron body TECHNICAL FEATURES - Mounted in the chuck with one set of jaws stepped outward (BB) - One set of jaws stepped inward (DB) - Size 70 with reversible jaws - Mounting screws   |
 |
A09 Lever scroll chucks with base plate, 3-jaw-chuck cast iron body
|
|||||||||||||||||||||||||||||||||||||||||||
 |
|
 |
