Supermini 105 |
| Insert Ø ≥ 3 mm | |||||||||
 Internal Grooving |
 Internal Coolant |
 Internal Thread |
 Metric ISO Thread |
||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||

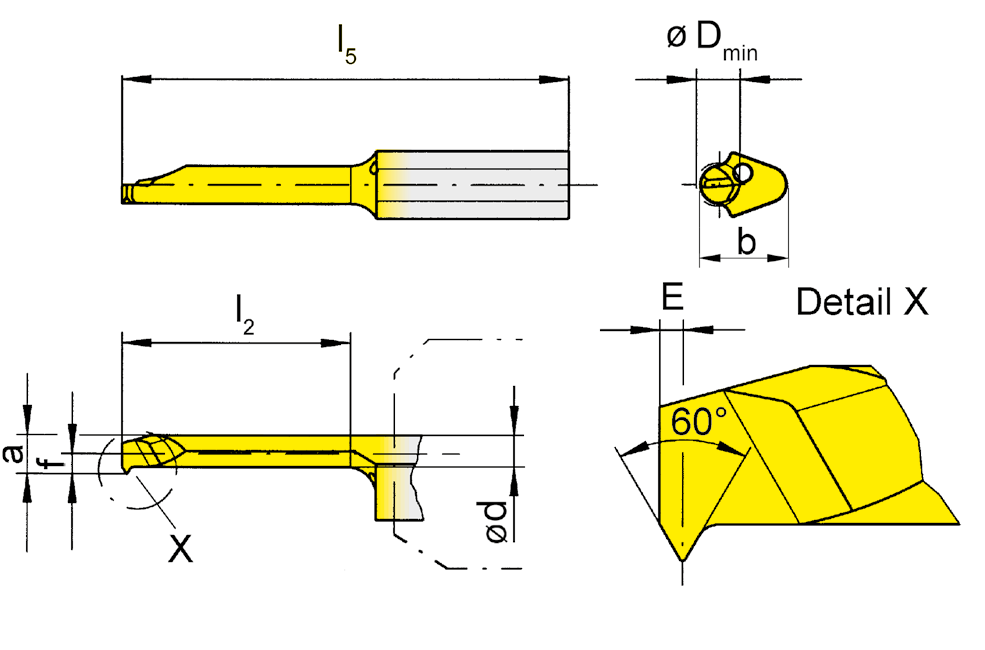

| Part number | P | E | f | a | d | b | l2 | l5 | Dmin | HIS | aaa | EG35 | TN35 |
| R105.0102.2.3 | 0.25 | 0.3 | 1.4 | 2.7 | 2.2 | 5.9 | 15 | 30 | 3 | 105123 | ⃤ | ▲ | |
| L105.0102.2.3 | 0.25 | 0.3 | 1.4 | 2.7 | 2.2 | 5.9 | 15 | 30 | 3 | 105123 | ⃤ | ▲ | |
| P | |||||||||||||
| M | |||||||||||||
| K | |||||||||||||
| N | |||||||||||||
| S | |||||||||||||
| H | |||||||||||||
We reserve the right to make technical changes.
