F-senso chuck clamping force measuring device F-senso chuck clamping force measuring device |
   |

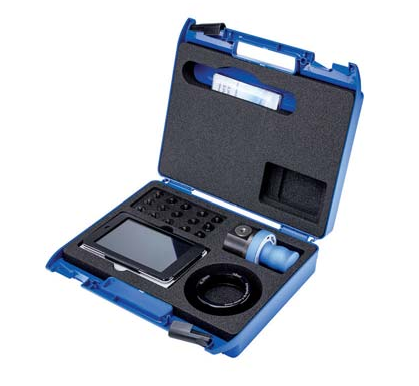

APPLICATION Suitable for 3 jaw chucks and vices. The F-senso clamping force measurement device enables you to check the clamping force as well as the rotational speed of your clamping tools. The centrifugal behavior is thus directly related to the accompanying software evaluated. TYPE • Broad clamping range of 75 - 175 mm through interchangeable pressure pins • Broad measuring range from 0 - 100 kN per jaw • Dynamic clamping force measurement under rotation up to 8250 rpm • Real-time data transmission via Bluetooth to included tablet • Delivered in the practical hard-shell case TECHNICAL FEATURES - No additional attachments necessary on the machine - Easy positioning through positioning aid - Automated switch-off Included in the scope of delivery: - Base with foam insert - Clamping force measuring head, F-senso chuck - Pressure bolts in lengths 5 mm, 15 mm, 25 mm and 30 mm - Pressure bolt elongation in length 25 mm - Practical insertion aid - Tablet PC with pre-installed measuring and evaluation program |
| C15 Clamping force measurement device F-senso chuck
|
 |
|
 |
