ISO Taper-toolholders

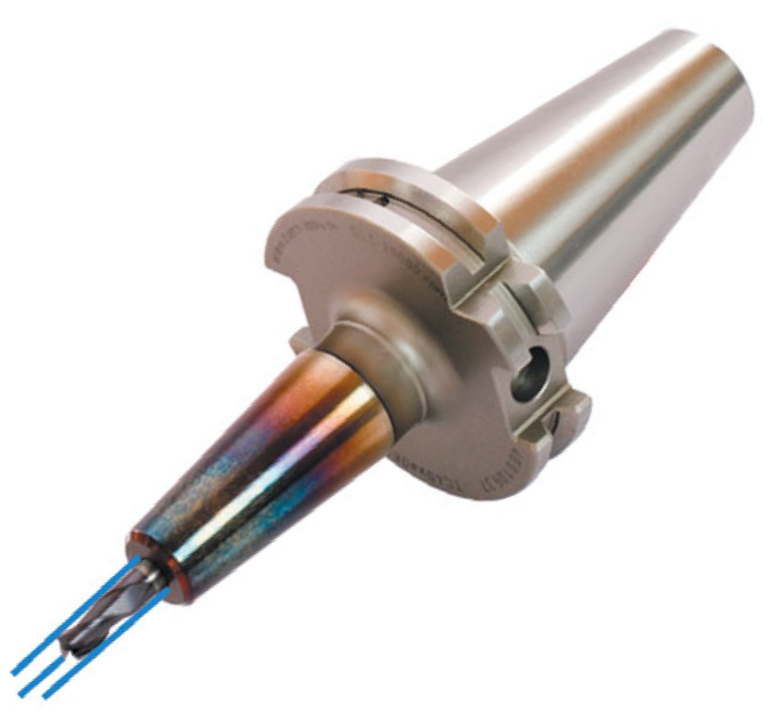

Shrinking chucks POWER-FLASH high-speed


Best possible coolant supply through coolant channels
in the boring.  Concentrated coolant supply up to 20,000
r.p.m. to the cutting edge

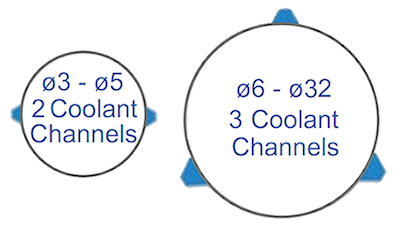

ø3-ø5 - 2 channels, ø6-ø32 - 3 channels

BT30 G 2.5 - 25,000 r.p.m.
SK40/BT40 G 2.5 - 20,000 r.p.m.

SK 40 DIN 69871, MAS BT 30 + 40, ø3 - ø32

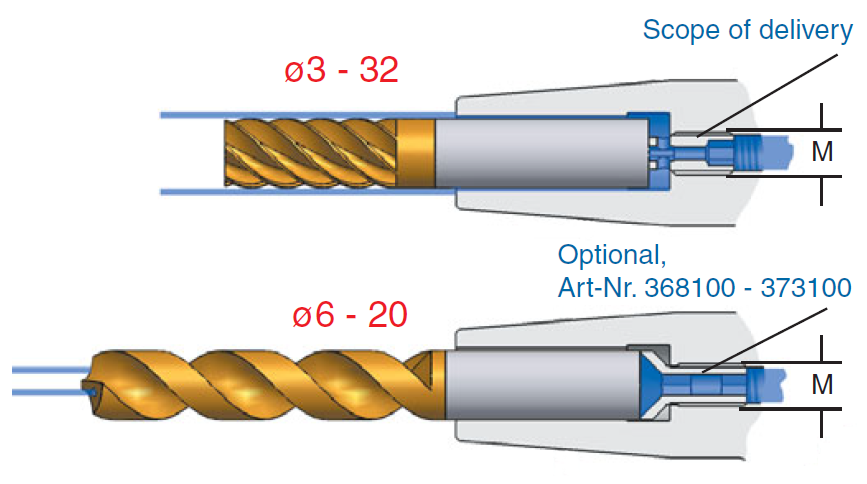

Delivery without tool
           Stop screw
  Art.-Nr. d M
  368100 ø6 M  8x1
  369100 ø8 M  8x1
  370100 ø10 M10x1
  371100 ø12 M10x1
  372100 ø16 M10x1
  373100 ø20 M10x1

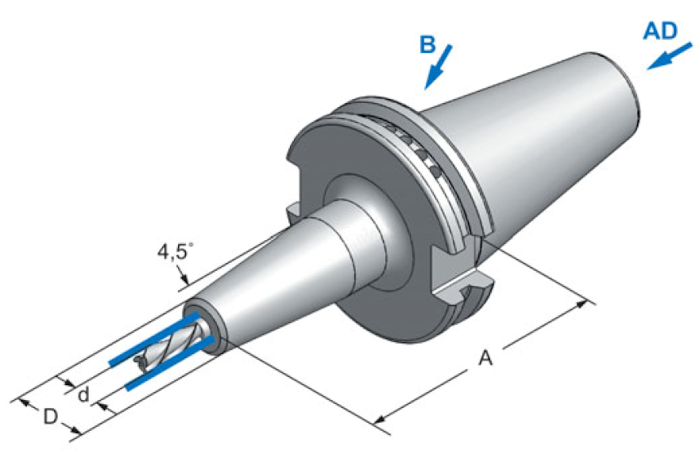

       DIN 69871
 Art.-Nr. Type A d D M
 40.01.03.37 SK40x03SCx  80-AD+B 80 3 10 M6
 40.01.04.37 SK40x04SCx  80-AD+B 80 4 11 M6
 40.01.05.37 SK40x05SCx  80-AD+B 80 5 14 M8x1
 40.01.06.37 SK40x06SCx  80-AD+B 80 6 16 M8x1
 40.01.08.37 SK40x08SCx  80-AD+B 80 8 21 M8x1
 40.01.10.37 SK40x10SCx  80-AD+B 80 10 24 M10x1
 40.01.12.37 SK40x12SCx  80-AD+B 80 12 24 M10x1
 40.01.16.37 SK40x16SCx  80-AD+B 80 16 26 M10x1
 40.01.20.37 SK40x20SCx  80-AD+B 80 20 33 M10x1
 40.01.25.37 SK40x25SCx100-AD+B 100 25 44 M10x1
 40.01.32.37 SK40x32SCx100-AD+B 100 32 44 M10x1

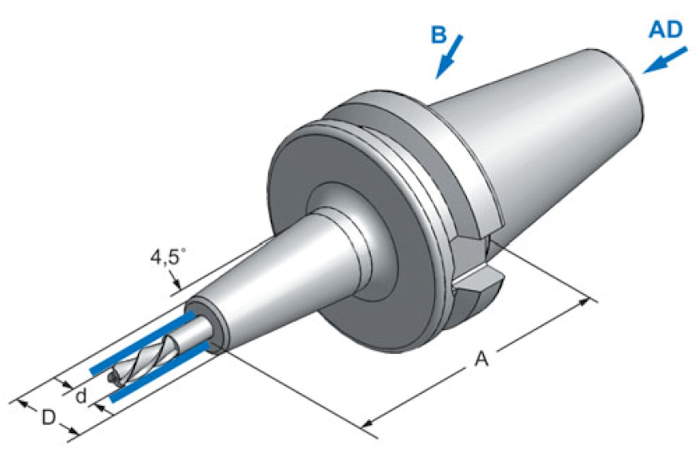

       MAS BT
 Art.-Nr. Type A d D M
 30.05.03.37 BT30x03SCx  70-AD 70 3 10 M6
 30.05.04.37 BT30x04SCx  70-AD 70 4 11 M6
 30.05.05.37 BT30x05SCx  70-AD 70 5 14 M8x1
 30.05.06.37 BT30x06SCx  70-AD 70 6 21 M8x1
 30.05.08.37 BT30x08SCx  70-AD 70 8 21 M8x1
 30.05.10.37 BT30x10SCx  70-AD 70 10 24 M10x1
 30.05.12.37 BT30x12SCx  70-AD 70 12 24 M10x1
 30.05.16.37 BT30x16SCx  70-AD 70 16 26 M10x1
 30.05.20.37 BT30x20SCx  70-AD 70 20 33 M10x1

 40.05.03.37 BT40x03SCx  80-AD+B 80 3 10 M6
 40.05.04.37 BT40x04SCx  80-AD+B 80 4 11 M6
 40.05.05.37 BT40x05SCx  80-AD+B 80 5 14 M8x1
 40.05.06.37 BT40x06SCx  80-AD+B 80 6 16 M8x1
 40.05.08.37 BT40x08SCx  80-AD+B 80 8 21 M8x1
 40.05.10.37 BT40x10SCx  80-AD+B 80 10 24 M10x1
 40.05.12.37 BT40x12SCx  80-AD+B 80 12 24 M10x1
 40.05.16.37 BT40x16SCx  80-AD+B 80 16 26 M10x1
 40.05.20.37 BT40x20SCx  80-AD+B 80 20 33 M10x1
 40.05.25.37 BT40x25SCx100-AD+B 100 25 44 M10x1
 40.05.32.37 BT40x32SCx100-AD+B 100 32 44 M10x1




We reserve the right to make technical changes.
