Steel and Solid Carbide Qualities High speed steel, tool steel and powder steel: |
|||||
O+H quality | DIN | AISI | JIS | Hardness | |
1. | HSS | 1.3343 | M2 | SKH51 | The hardness will be defined in accordance to the application |
2. | HSS-E HSS |
1.3243 1.3355 |
M35 T1 |
SKH55 SKH2 |
|
3. | Tool steel | 1.2080 1.2379 |
D3 D2 |
SKD1 SKD11 |
|
4. | Powder steel | ASP23 ASP53 |
Solid carbide qualities: | |||||
O+H quality | DIN | Hardness app. |
Tensile strength N/mm2 |
Grain size µm |
|
1. | CarboCut® | G20 | 1340 HV | 2500 | 1.0 - 2.0 |
2. | CarboCut® | G20 | 1220 HV | 2800 | 1.0 - 2.0 |

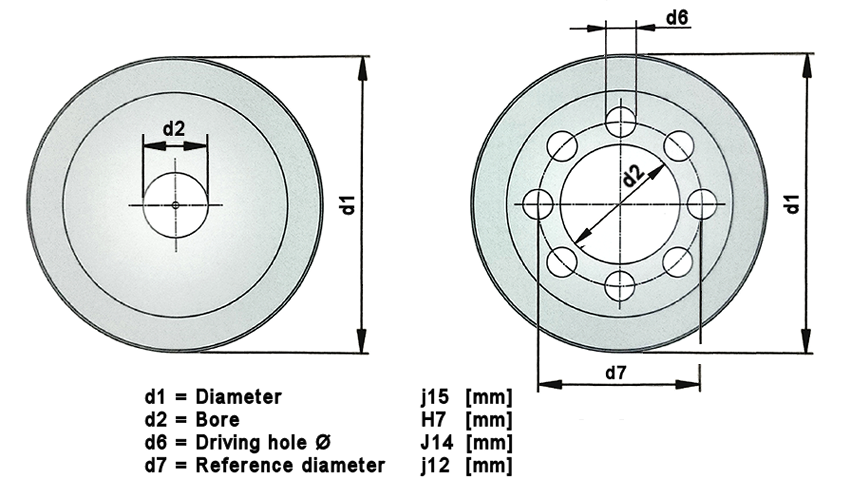

Circular Knife Definition |
Surface Technology and Coatings The circular knives made of HSS and solid carbide are available with different coatings depending on the application. Coated circular knives are mainly used in order to reduce the friction and to improve the sliding behaviour. Beside the thin layer coatings such as CONCEPT based on titaniumnitrid there are also anti-friction coatings available such as Teflon etc. |
Bevel Design |
|||||||||||||||||||
Bevel design | OTT+HEUGEL drawing |
OTT+HEUGEL standard no. examples |
Quality | Diameter [mm] |
Width [mm] |
Tolerance of width | Reference to the application | ||||||||||||
single bevel | standard form 12 |
|
HSS standard ±0.05mm up to Ø 499mm; ±0.15mm up to Ø 570mm; solid carbide ±0.05mm |
1 | |||||||||||||||
double bevel | standard form 11 |
|
2 | ||||||||||||||||
single bevel with top bevel | standard form 16 |
|
3 | ||||||||||||||||
double bevel with top bevel on both sides | standard form 15 |
|
4 | ||||||||||||||||
HSS=high speed steel WS=tool steel VHM=solid carbide PM=powder material |
Tooth and Notch Design |
||||
Tooth/Notch design |
OTT+HEUGEL drawing |
OTT+HEUGEL standard examples |
Definition | Reference to the application |

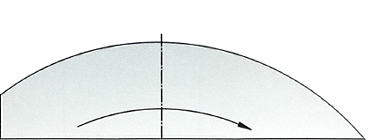

without tooth and notch design | ATBN 03333 | - | A | |

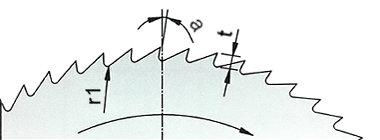

standard tooth | ATBN 03334 | t = toothdepth r = radius a = rake angle |
B | |

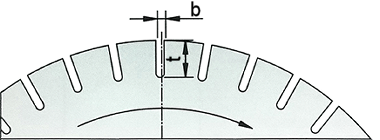

standard notch | ATBN 03336 | b = width t = depth |
C | |

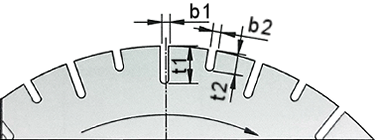

special notch | ATBN 03338 | b1 = width t1 = depth b2 = width t2 = depth |
D |
Applications with reference to Bevel and Tooth Design |
|||||
Application | Industry | Examples | Dimension [mm] |
Quality | Reference to bevel and tooth design |
tube and profile industry, rubber, plastic in combination with steel | hydraulic hoses for the automotive industry, high pressure hoses for the chemical industry | 300 x 2.5 x 50 260 x 1.5 x 50 |
HSS-E WS |
2 A 4 D 3 C |
|
textile, foamed material | sealing and insulating material, textile sheet, packing material | 250 x 2.0 x 32 | HSS | 1 C 2 A |
|
paper and cardboard industry | cardboard tubes for toilet paper, round cartons for packing industry | 125 x 2.0 x 60 | HSS | 4 A | |
foil and adhesive tape industry | aluminium and pvc foil, single or double adhesive tapes, surgical bandage | 200 x 1.5 x 30 | solid carbide | 3 A 2 B |
|
