| Tool Table | ||||||||

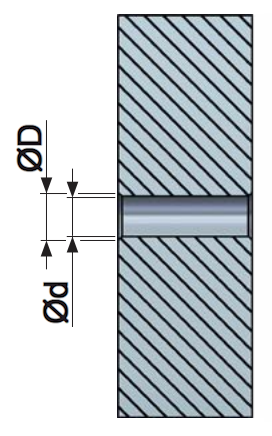

Tool dimensions |
Tool without Blade |
|||||||
| Bore-Ø Ød |
Chamfer-Ø max1 ØD |
Tool-Ø ØD1 |
Max.-Ø2 ØD2 |
Part number Work. length NL 10 mm |
Part number Work. length NL 20 mm |
Part number Work. length NL 30 mm |
||
| 3.0 | 3.3 / 3.6 | 2.9 | SNAP3/3.0/10 | SNAP3/3.0/20 | SNAP3/3.0/30 | |||
| 3.1 | 3.6 / 3.9 | 3.0 | SNAP3/3.1/10 | SNAP3/3.1/20 | SNAP3/3.1/30 | |||
| 3.2 | 3.6 / 3.9 / 4.2 | 3.1 | SNAP3/3.2/10 | SNAP3/3.2/20 | SNAP3/3.2/30 | |||
| 3.3 | 3.9 / 4.2 | 3.2 | SNAP3/3.3/10 | SNAP3/3.3/20 | SNAP3/3.3/30 | |||
| 3.4 | 3.9 / 4.2 | 3.3 | ØD + 0.3 | SNAP3/3.4/10 | SNAP3/3.4/20 | SNAP3/3.4/30 | ||
| 3.5 | 3.9 / 4.2 / 4.5 | 3.4 | SNAP3/3.5/10 | SNAP3/3.5/20 | SNAP3/3.5/30 | |||
| 3.6 | 4.2 / 4.5 | 3.5 | SNAP3/3.6/10 | SNAP3/3.6/20 | SNAP3/3.6/30 | |||
| 3.7 | 4.2 / 4.5 | 3.6 | SNAP3/3.7/10 | SNAP3/3.7/20 | SNAP3/3.7/30 | |||
| 3.8 | 4.2 / 4.5 / 4.8 | 3.7 | SNAP3/3.8/10 | SNAP3/3.8/20 | SNAP3/3.8/30 | |||
| 3.9 | 4.5 / 4.8 | 3.8 | SNAP3/3.9/10 | SNAP3/3.9/20 | SNAP3/3.9/30 | |||
1) Different chamfer-Ø can be achieved per tool size by using different blades. One blade however produces one defined chamfer-Ø only. The achievable chamfer capacity varies slightly depending on material, blade force, cutting data or application. The indicated dimension is the theoretically possible maximum. 2) The maximum diameter D2 varies depending on the selected blade. Please calculate value with formula. Please mind any interfering edges. |
||||||||
Note: - The tool types SNAP2, SNAP3 and SNAP4 are available with cylindrical shank only. - Attention: The tools are without blade. The blades for the tool need to be ordered seperately . |
||||||||
 |
|||||||

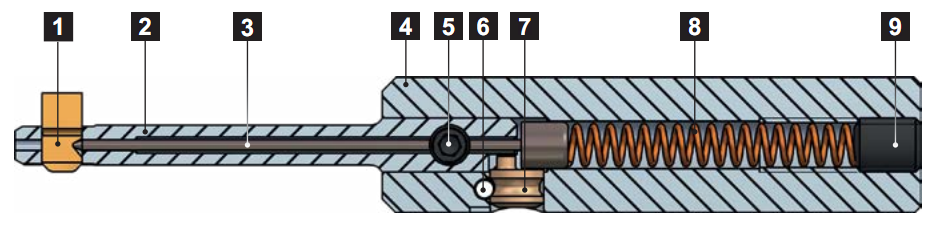

| Spare Parts | |||||||
| Pos. | Description | Part No. | |||||
| 1 | Blade | see below | |||||
| 2 | Blade housing | ||||||
| 3 | Control bolt | GH-Q-E-0236 (NL: 10mm) | |||||
| GH-Q-E-0237 (NL: 20mm) | |||||||
| GH-Q-E-0238 (NL: 30mm) | |||||||
| 4 | Tool body SNAP2-4 Ø10 h6 | GH-Q-G-5024 | |||||
| Tool body assembly SNAP2-4 Ø10 h6 | GH-Q-G-5025 | ||||||
| incl. Excenter GH-S-E-0031 | |||||||
| incl. Roll pin GH-C-E-0811 | |||||||
| 5 | Locking screw M3x3.3 | GH-H-S-1075 | |||||
| 6 | Roll pin SNAP2-4 | GH-C-E-0811 | |||||
| 7 | Excenter SNAP2-4 | GH-S-E-0031 | |||||
| 8 | Spring Ø3.2xØ0.45x23.0 | GH-H-F-0047 | |||||
| 9 | Set screw M4x5 DIN913 | GH-H-S-0134 | |||||
| Wrench SW1.5 to Pos. 9 | GH-H-S-2101 | ||||||
| Blade GS Geometry 90° | |||||||
| Part number Blade | |||||||
| forward and backward cutting | backward cutting only | ||||||
| Chamfer-Ø1 | Coating A | Coating D | Coating A | Coating D | |||
| 3.3 | GH-Q-M-40171* | GH-Q-M-40172 | GH-Q-M-40771 | GH-Q-M-40772 | |||
| 3.6 | GH-Q-M-40201* | GH-Q-M-40202 | GH-Q-M-40801 | GH-Q-M-40802 | |||
| 3.9 | GH-Q-M-40231* | GH-Q-M-40232 | GH-Q-M-40831 | GH-Q-M-40832 | |||
| 4.2 | GH-Q-M-40261* | GH-Q-M-40262 | GH-Q-M-40861 | GH-Q-M-40862 | |||
| 4.5 | GH-Q-M-40291* | GH-Q-M-40292 | GH-Q-M-40891 | GH-Q-M-40892 | |||
| 4.8 | GH-Q-M-40321* | GH-Q-M-40322 | GH-Q-M-40921 | GH-Q-M-40922 | |||
| Coating A: Coating for steel, titan, Inconel | Coating D: Coating for aluminium alloys only | ||||||
| *) Standard items / Please enquire about stock or delivery times for all non-standard items. 1) The indicated dimension is the theoretically possible maximum. |
|||||||
 |
|
 |
